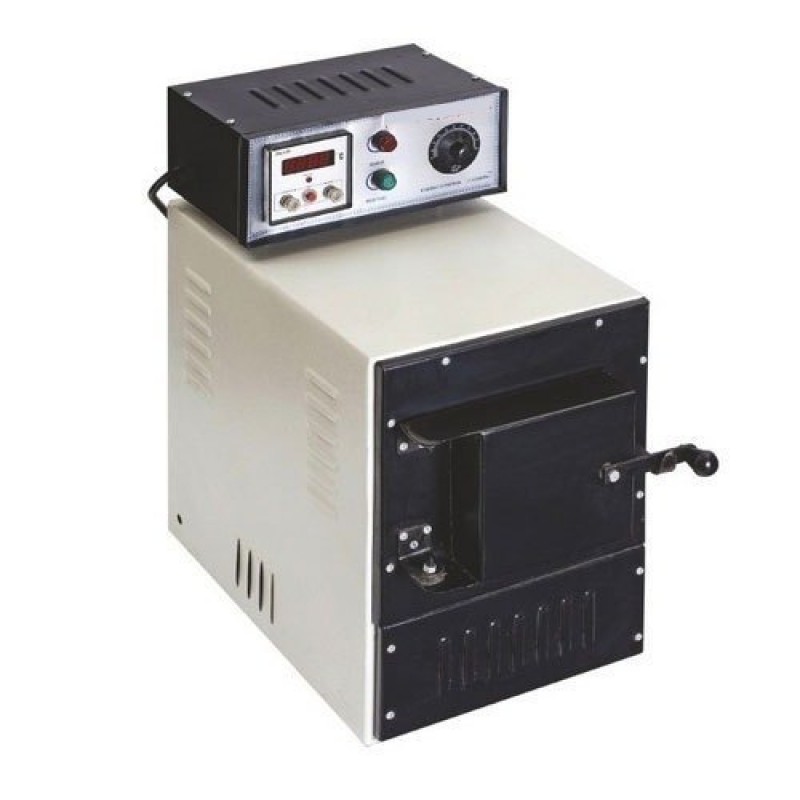

Muffle Furnace
Product Details :
| Brand | MALIKSI |
| Model Name/Number | MAL-123 |
| Minimum Order Quantity | 1 Piece |
Applications :
- Particle size distribution
Salient Features
- Ceramic fiber wool insulation to reduce weight and size of furnace.
- Less heat up time is
- Nominal heat-loss resulting in power saving
- Built in vent port for removal of noxious gases etc.
- Provision of hole with cover in the furnace door to insert temp sensor for calibration purpose
- Construction : CRC sheet - attractively powder coated
- Max Temperature : 1000°C
- Working Temperature : 900°C
- Temperature control : Dual display microprocessor based Digital temperature indicator cum controller
- Temperature Sensor : K - type sensor
- Heating elements : KANTHAL A-1 wire in coil form placed in the Elements ribs & easily replaceable
- Circuit Wiring : As per CE Norms
- Operation on : 220/230 Volts, Single phase, AC Supply
- Available in following sizes
Selection Guide
Inner chamber size (mm) (H x W x D) | 9X4X4 | 9X5X5 | 12X6X6 | 12X8X8 |
Note - Price will be change as per specification
