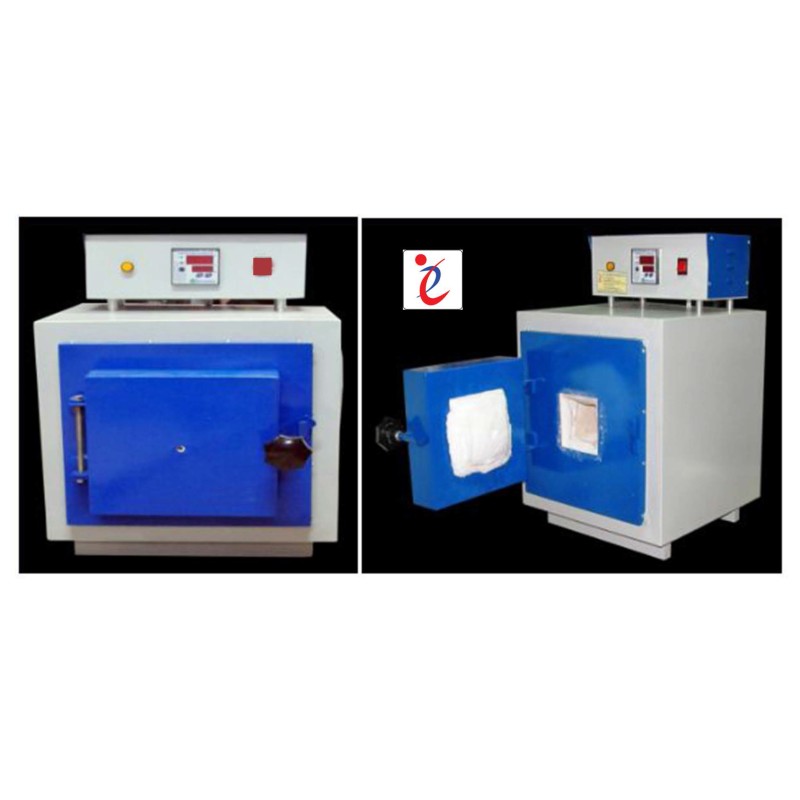

Muffle Furnace
Product Details :
Rectangular electric furnace with lightweight and fast heating system, the body is constructed out of Mild steel sheet duly powder coated / Epoxy painted in beautiful attractive clours. With a maximum temperature of 900˚C and a working temperature of 600˚C, with ceramic wool insulation, controlled by digital temperature controller cum indicator, and suitable thermocouple. The control panel consists of one of the switch, indicator lamps suitable to work on single-phase 240V AC 50 Hz or 440 V AC 3 Phase
Description :
| Model | size | Power KW |
| EMF-1 | 100x100x225mm | 2 |
| EMF-2 | 125x125x250mm | 2.5 |
| EMF-3 | 150x150x225mm | 3 |
| EMF-4 | 150x150x300mm | 3.5 |
| EMF-5 | 225x225x300mm | 4.0 |
OPTIONAL:-
- Safety blind Controller
- Digital Timer
- Chamber Validation/ calibration
- Door safety switch stops power to heating elements when door is opened
- Imported Microprocessor based PID Controller
- Digital Microprocessor based controller with RS-232 & PC inter phase
- Any other sizes can be supplied on demand
- Higher temperature accuracy models can be supplied on demand
- Fully Stainless steel model available on demand.
