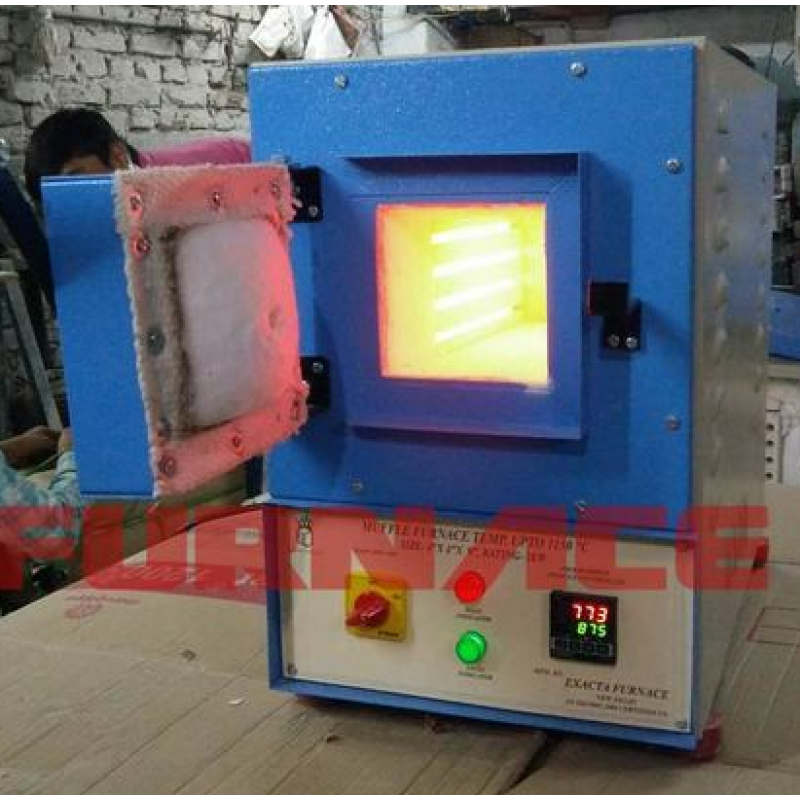

Muffle Furnace

Features

Thermocouple, Energy Regulator

Manufacturer of Muffle Furnace for 900 degree, 1200 degree, 1400 degree and 1800 degree.We are prominent manufacturer of Muffle Furnaces, our Industrial muffle furnaces are specially designed to suit IS and ASTM Standard. It is applied in growing fields of Medical research, agricultural, industrial, metal treatment, ash determination & wool industries.

Technical Specification for Muffle Furnaces :

• Outside Body made of G.I. Sheet powder coated
• Inner muffle of Ceramic with high grade ceramic instillation
• Door insulation of HFK bricks
• Heating element are made from kanthal A1 Wire
• A Uniform distribution through all 4 sides with kanthal wire
• Max. Working temp upto 1160⁰C
• Equipped with digital temp. Controller cum indicator fitted on top side of the unit with indicating lamps & switches
• A special type of thermocouple fuse for safety to avoid over heating
• Power supply 230 Volts, 50 H₂

Optional Accessories with Muffle Furnaces :

• Digital Timer
• Solid state fuses for extra safety
• PID Controller with printer interface

Sizes available for industrial muffle furnaces are as below :

Inner Dimension	Outer Dimension	Rating K.W.	Power consumer	Net weight
9"x4"x4"	18"x14"x14"	2	9	30 KG
10"X5"X5"	19"X15"X15"	2.5	11	40 KG
12"X6"X6"	21"X17"X17"	3.5	15	55 KG
18"X9"X9"	28"X20"X20"	6	26	80 KG
