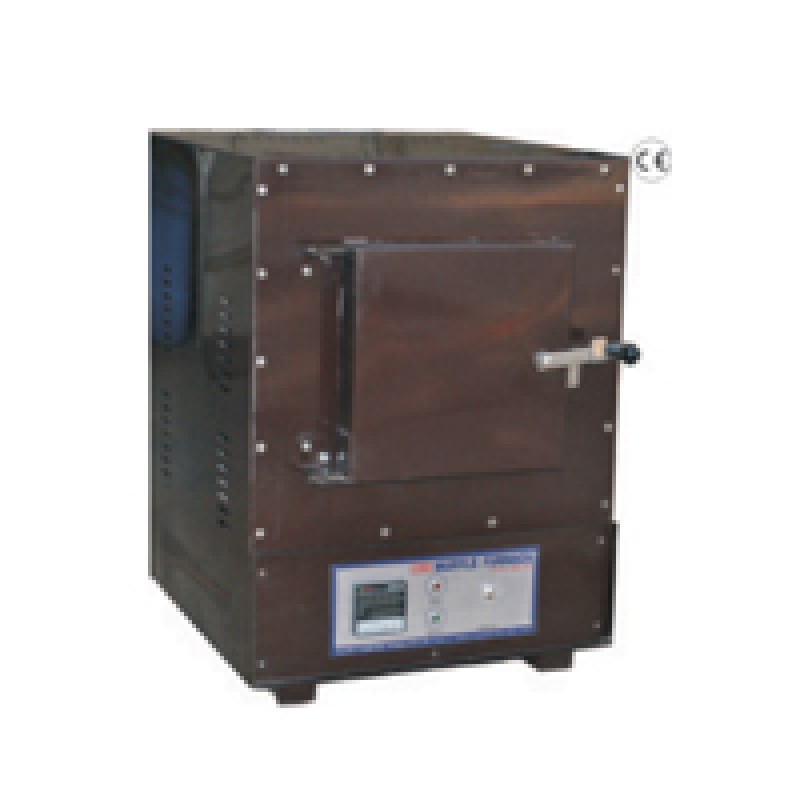

MUFFLE FURNACE MICROPROCESSOR CONTROLLED DELUXE MODEL REW-251

Product Details :

• Light weight with ceramic fibre wool insulation.
• Triple walled with outer casing and inner wall made of double walled thick P.C.R.C. sheet, duly painted.
• Heating elements are made of KANTHAL wire backed by cerwool insulation.
• A viewing cap is also provided on the door.
• With the distinguished Autotune Digital PID controller, it provides precise control of temperature.
• Available in three different working ranges with maximum working temperature range upto 11500C.
• Temperature range upto 9000C (Maximum 10000C)
• Temperature range upto 10000C (Maximum 10500C)
• Temperature range upto 11500C (Maximum 12000C)
• Overload safety cut-off provided as a standard feature.
• Very suitable for various purposes like gravimetric analysis for organic substance and measurement of quantity for coal and lime
• With the distinguished Autotune Digital P.I.D. Controller, it provides precise control of temperature.
• By the highly efficient heater insulated in the chamber, it heats the materials uniformly.
• With this excellent features. It surely reduces time of temperature climb.
• By using the high density ceramic wool as a insulator, it maintains consistent temperature and minimal heat dissipation.

TECHNICAL SPECIFICATION & ORDERING INFORMATIONS

MUFFLE FURNACE WITH WORKING TEMPERATURE 900^oC

MODEL	#REW-2(DX)	#REW-5(DX)	#REW-7(DX)	#REW-12(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	100x100x225	125x125x300	150x150x300	200x200x300
WORKING TEMPERATURE	9000C	9000C	9000C	9000C
POWER CONSUMPTION (Approx.)	1.5 KW	2.0 KW	3.0 KW	4.0 KW



MODEL	#REW-15(DX)	#REW-28(DX)	#REW-42(DX)	#REW-56(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	175X175X475	300X300X300	300X300X455	300X300X605
WORKING TEMPERATURE	9000C	9000C	9000C	9000C
POWER CONSUMPTION (Approx.)	4.5 KW	7.5 KW	12.00 KW	12.00 KW

MUFFLE FURNACE WITH WORKING TEMPERATURE 1000^oC

MODEL	#REW-2(DX)	#REW-5(DX)	#SAI(DX)	#REW-12(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	100x100x225	125x125x300	150x150x300	200x200x300
WORKING TEMPERATURE	10000C	10000C	10000C	10000C
POWER CONSUMPTION (Approx.)	2.5 KW	2.5 KW	3.5 KW	4.5 KW



MODEL	#REW-15(DX)	#REW-28(DX)	#REW-42(DX)	#REW-56(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	175X175X475	300X300X300	300X300X455	300X300X605
WORKING TEMPERATURE	10000C	10000C	10000C	10000C
POWER CONSUMPTION (Approx.)	6.0 KW	7.5 KW	12.00 KW	12.00 KW

MUFFLE FURNACE WITH WORKING TEMPERATURE 11500C

MODEL	#REW-2(DX)	#REW-5(DX)	#REW-7(DX)	#REW-12(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	100x100x225	125x125x300	150x150x300	200x200x300
WORKING TEMPERATURE	11500C	11500C	11500C	11500C
POWER CONSUMPTION (Approx.)	2.5 KW	2.5 KW	3.5 KW	4.5 KW



MODEL	#REW-15(DX)	#REW-28(DX)	#REW-42(DX)	#REW-56(DX)
INTERNAL WOKZONE DIEMNSIONS (WxDxH) (mm)	175X175X475	300X300X300	300X300X455 Write a review Your Name Your Review Note: HTML is not translated! Rating     Bad           Good Please complete the captcha validation below Continue MUFFLE FURNACE MICROPROCESSOR CONTROLLED DELUXE MODEL REW-251 Views: 103 Renu Engineering Works Vendor Type: Manufacturer, Supplier Product Code: REW-251 Availability: In Stock ₹0 Get Quote Add to Wish List Compare this Product 0 reviews / Write a review Seller information Renu Engineering Works Renu Engineering Works http://www.laboratoryinstruments.in/index.php New Delhi, India Business Type :Supplier, Manufacturer View profile ×Close Send a message to Renu Engineering Works Message: Close Send Please sign in to contact Renu Engineering Works Tags: furnace
