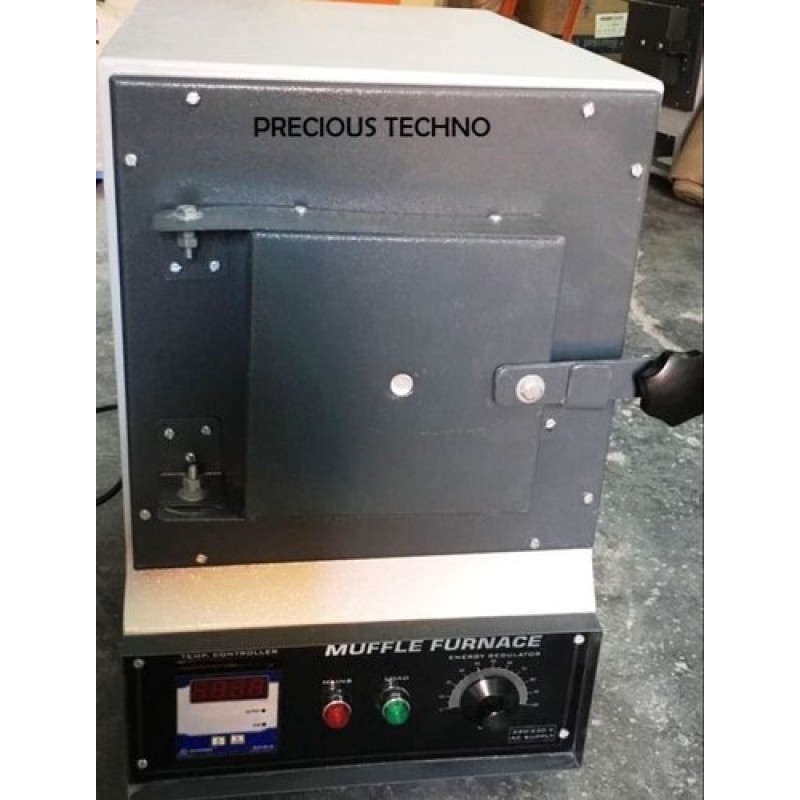

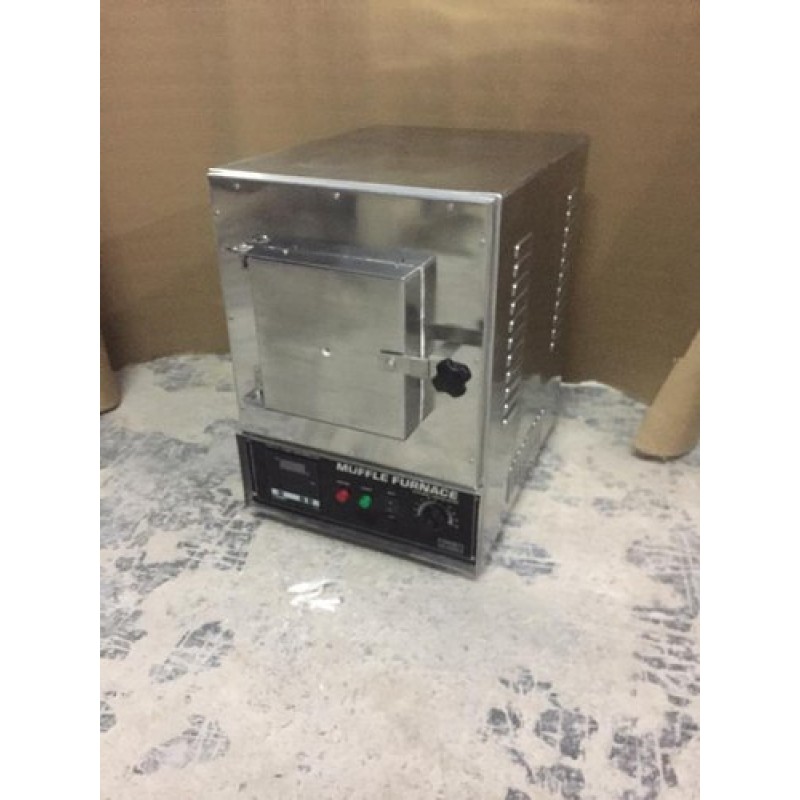

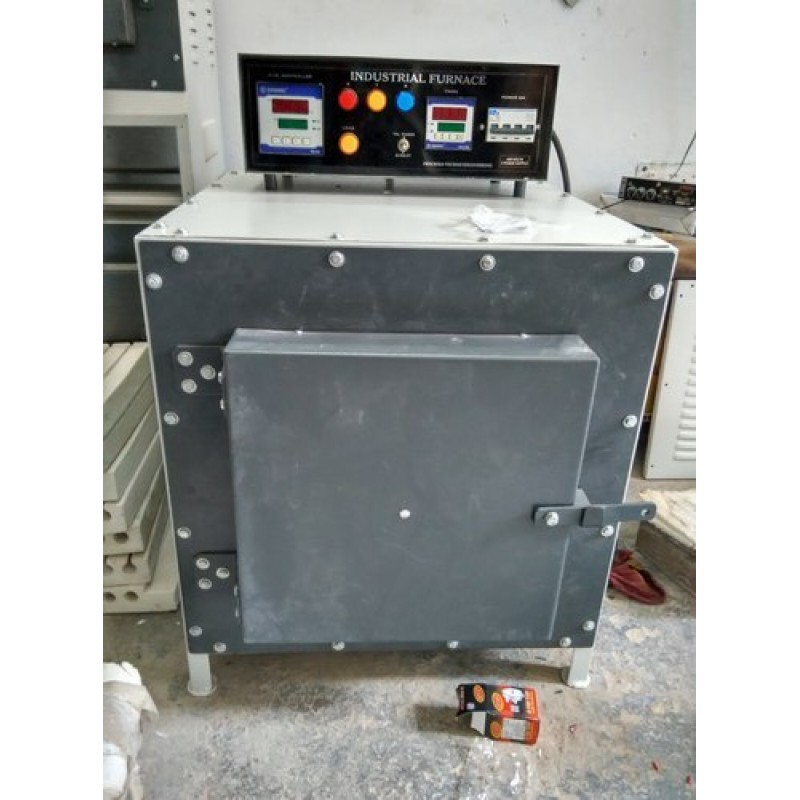

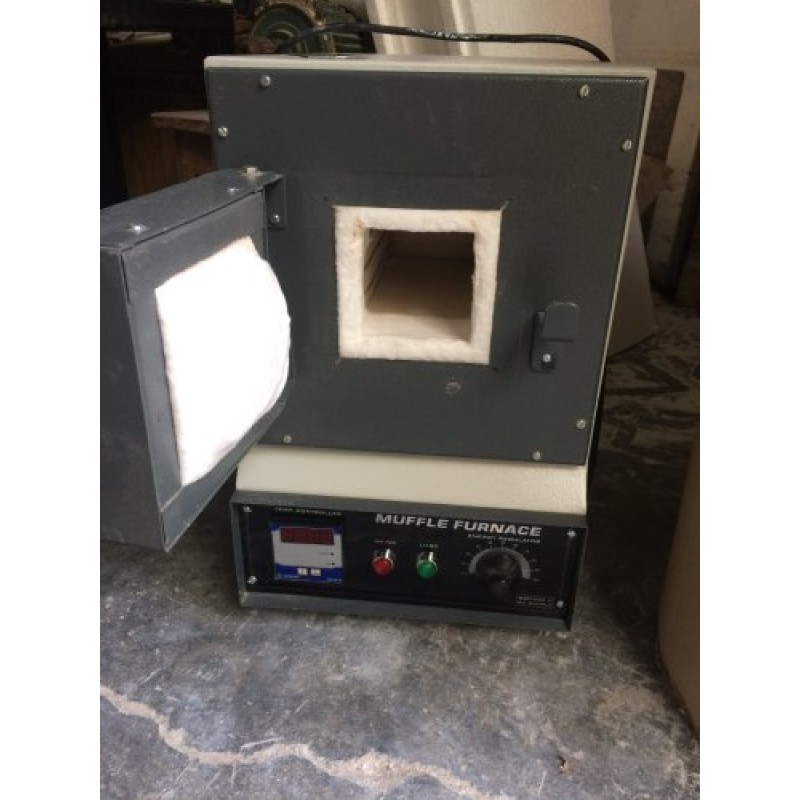

High Temperature Muffle Furnace
Product Details :
| Max Temperature | 1200 Deg C, 1100-1200 Degree Celsius |
| Working Temperature | 1150 Deg C |
| Power Source | Electric |
| Voltage | 220/230 V |
| Frequency | 50/60 Hz |
| Brand | Precious Techno Engineering |
| Material | Stainless Steel |
| Dimension | 4 x 4 x 9, 6 x 6 x 6, 8 x 8 x 12, 5 x 5 x 10 Inch |
Features for Muffle Furnace
- Outer casing is made of thick Mild Steel duly powder coated.
- Light weight with ceramic fiber wool insulation (instead of Brick insulation).
- Heating elements are made of KANTHAL “A-1” wire.
- Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
- Fitted with heavy hinges & door is duly insulated.
- Maximum working temperature range upto 1150oC are fitted with wounded muffle.
- Maximum T emperature is 1200°C and working temp. 1150oC.
- Fitted with thermocouple & silver fuse for protection of chamber.
- Temperature is controlled by energy regulator with display of temperature on pyrometer fitted on panel with an accuracy of + 2%.
- Temperature is controlled by electronic digital temperature indicator cum 0 controller from 50oC to 1150oC, + 5 C fitted on the front panel for easy operations. (Optional).
- Temperature is displayed by Digital LED with SV and PV display at front of the Furnace (Optional).
- Front Panel is provided with ON/OFF switch, sun Vic energy regulator , pyrometer and indicators.
- Supplied with cord and plug.
- Operating Voltage: 220 Volts AC (50 Hz).
Features:
- Durable nature
- Perfectly engineered
- Precise design
High Temperature Muffle Furnaces
- Views: 61
-
Precious Techno Engineering - Product Code: PTE0000017
- Availability: In Stock
- ₹0
