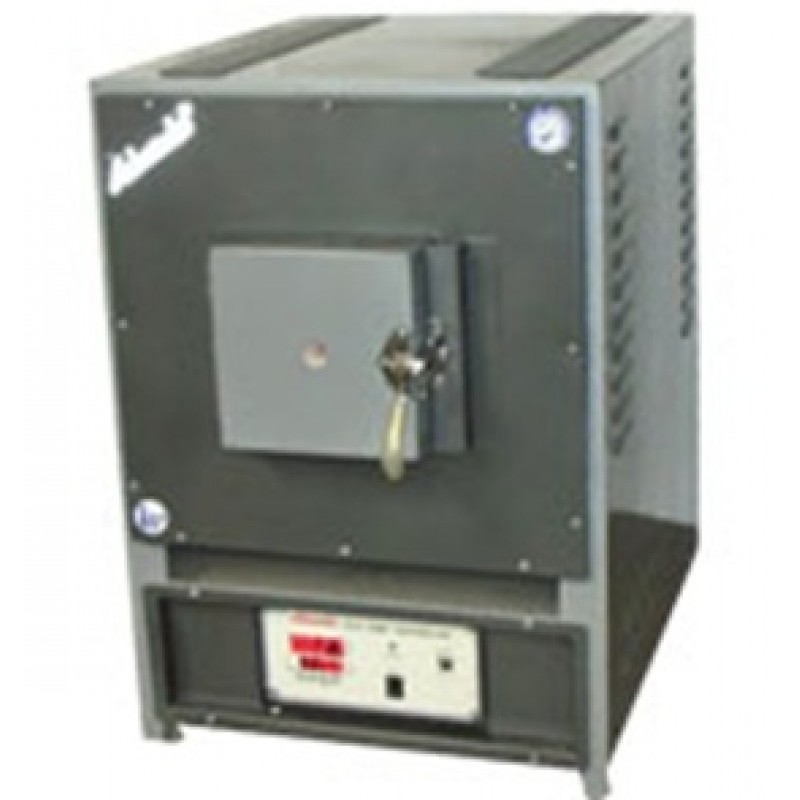

HIGH Temperature Furnace of 1200ºC: “ISIC”

 Product Details :

Light weight with ceramic fibre wool insulation. The outer casing is made of double walled thick P.C.R.C. sheet painted with attractive stove enamel.

Heating elements are made of KANTHAL “A-1” wire in coil Form placed in the ribs of the tiles, backed by cerawool insulation, which avoids loss of energy. A viewing cap is also provided on the door. Temperature controlled by PID Micro Processor Controller Dual Display with safety Alarm an accuracy of +3ºC or Better. To work on 220/230 Volts or 400/440 Volts A.C. 3 phase supply.

Maximum Temp. 1200º working temp. 1150ºC

Tile  size                                                  Rating

Width x Ht x Depth

100x100x225 mm. (4”x4”x9”)               2.5 k.w

125x125x250 mm. (5”x5”x10”)             3.0 k.w

150x150x300 mm. (6”x6”x12”)             4.0 k.w

200x200x300 mm. (8”x8”x12”)             5.0 k.w

200x200x450 mm. (8”x8”x18”)             6.0 k.w

300x300x300 mm. (12”x12”x12”)         6.0 k.w

300x300x450 mm. (12”x12”x18”)         9.0 k.w

300x300x600 mm. (12”x12”x24”)        12.0 k.w

Optional Accessories :

1)  Digital Timer of 99.59 Hours can also be provided at an extra cost of
