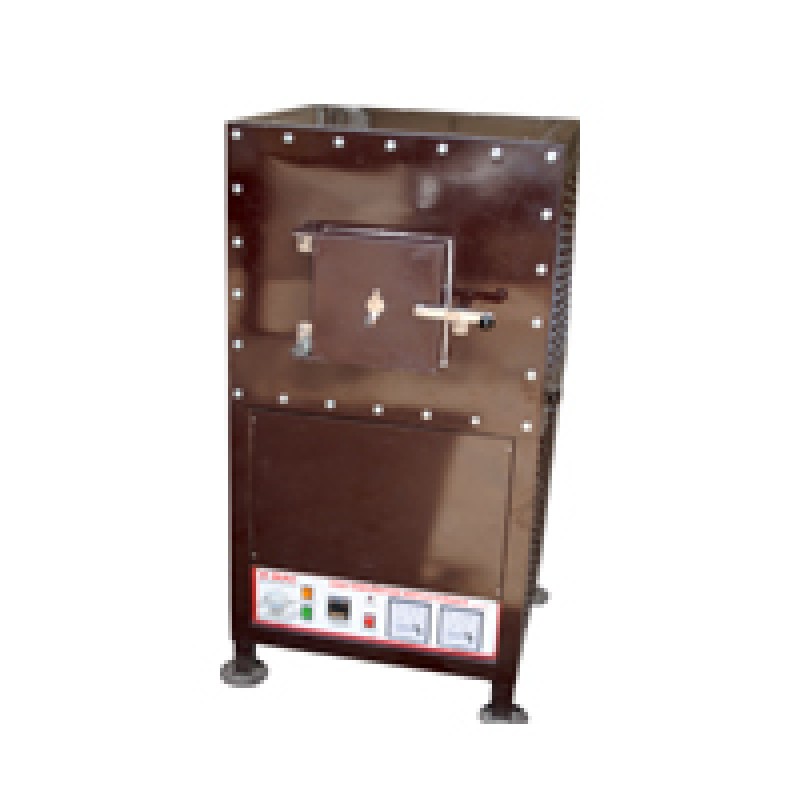

HIGH TEMPERATURE HEAT TREATMENT FURNACE MSW-253
Product Details :
Most useful where high temperature curing is required with
maximum temperature upto 1450°C and working temperature range upto 1400°C.
Fitted with Microprocessor Based Digital Temperature Indicator-cum-controller.
Silicon-carbide heating elements are fitted for uniform temperature inside the
chamber. Body mounted on a heavy M.S. frame covered with CRC Sheet duly powder
coated. Fitted with chamber made of CUMILAG tiles exhibit unique combination of
chemical, mechanical stability and insulating properties. These are suitable
for applications at high service temperatures. Bubble alumina range of
insulating refractories are of light weight, have good load bearing capacity,
and low heat capacity. These can be directly exposed to flame, and combustion
products. Our furnaces have some very
Unique Features :
- Very high refractoriness, structural strength.
- Low thermal conductivity, shrinkage and creep.
- High resistance to reducing atmosphere and Uniform
pore size.
- Distribution and Control through a phase angle
control THYRIOSTORISED POWER DRIVE with Soft Start in lieu of Manual
Control System, and a multitap solid state step down transformer.
TECHNICAL SPECIFICATION
& ORDERING INFORMATION
MODEL | #REW-253 |
HEATING CHAMBER (WXHXD) | 150mmx150mmx300mm |
THYRISTON POWER DRIVE | Phase Angle control Thyristor Power drive. Along with voltage/current control and limit facility. |
TEMPERATURE CONTROLLER CUM INDICATOR | Microprocessor Digital PID Temperature
Indicator-cum-Controller |
TEMPERATURE RANGE | 14500C Maximum, Working Upto 14000C |
THERMOCOUPLE | Input Sensor:- Pt.Pt./Rh 30% Type "B" with Recrystalized alumina sheath & connecting holder complete set. |
THERMAL INSULATION | SUPER REFRACTORY and FIBROUS CERAMIC of appropriate grade and low heat capacity. |
CONSTRUCTION | (Floor Model Type) Rugged body; height of the door from the floor is approx 4.5 feet with steel stand. Swing aside door, manually operated front side of the furnace. |
COOLING FAN/AIR CIRCULATION | Attached with Furnace, Provided inside the control unit to protect COSTLY COMPONENT |
ELECTRIC SUPPLY | Input Supply 230V AC, 50Hz |
OPTIONS
Spare Silicon
Carbide Heating rod. Spare Clip to
hold heating rod.
