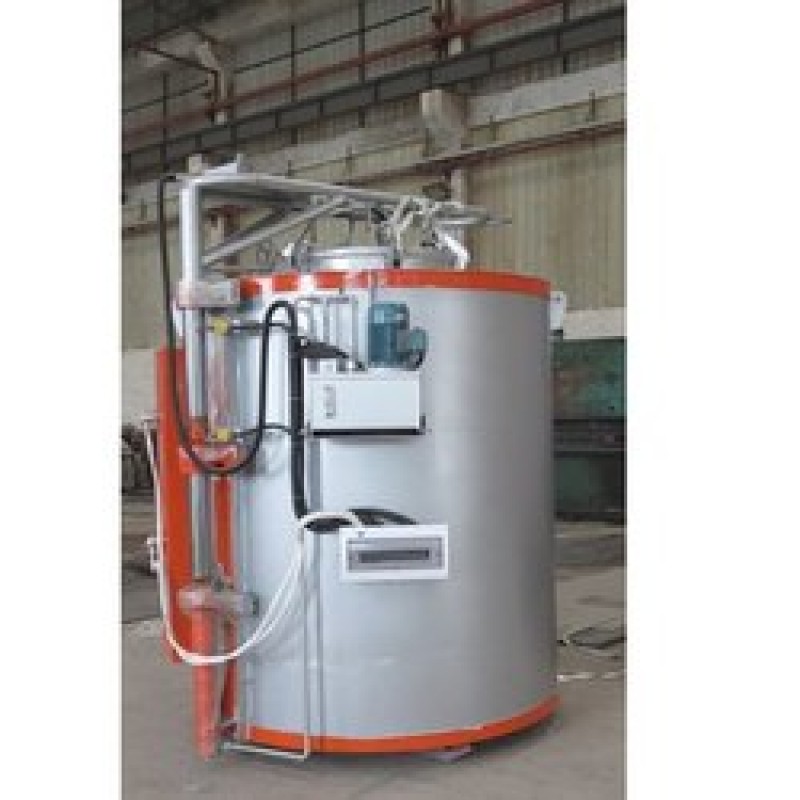

Gas Carburizing Furnace

Product Details:

Description:

Esco Furnaces presents you our range of  Gas Carburising Heat Treatment Furnace consisting  of Quenching tank and temperature control system.Our manufactured Gas Carburising Furnace follows a system where steel  efficiently soaks up carbon while the metal is heated in the company of high carbon and flue gases which eventually makes the metal properties harder  and results in better heat treatment process.

Features:

• Production capacity 150kg/hr to 1000kg/hr
• Operating temperature up to 950oC and can be further customized as per the costumer needs.
• Sophisticated controls including SCADA & Data Acquisition can be offered
• Option for Endothermic gas or Nitrogen-Methanol system as atmosphere
• Option for Gas fired or Electric heating with Radiant tubes
• Fully automatic, PLC controlled closed loop system
• Ability to process large numbers of different components
• Modular designs for flexibility and ease of maintenance
• Silicon carbide skid rails for smooth long lasting movement of charge
• Pneumatically operated door systems for positive sealing
• Pusher mechanism designed for heavy loads
• Automatic  adjustment  of stroke length to compensate for thermal expansion
• Guiding of quenching oil throughout the charge with baffles located inside the quench tank
• Tested Electric resistance elements gives better life and performance.
• Our furnace consumes less electricity in process of heating of materials.

Applications:

• Gears, Crowns, Pinions, Transmission & Axle components, Castings, Forgings and Engine components.

Metallurgical Processes:

• Carburising, Carbonitriding, Neutral Hardening, Annealing, Isothermal Annealing, Spherodize Annealing, Normalising, Stress Relieving, Solution Treating & Ageing.
