Make: Allengers Global Healthcare

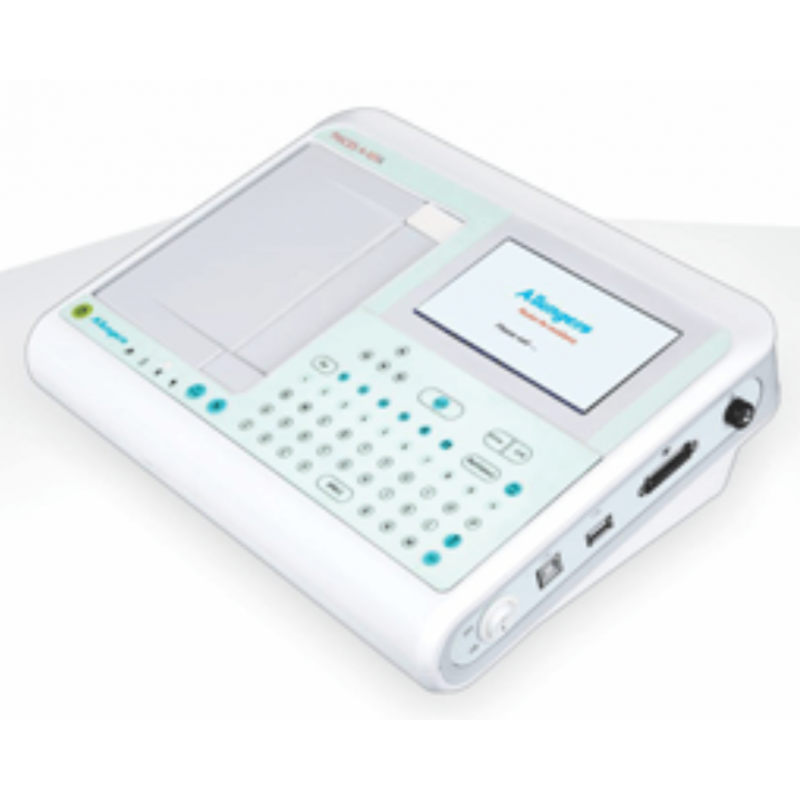

Model: Pisces A-103i
Description: -12 leads simultaneous acquisition to get accurate ECG measurements and ECG on screen helps to check ECG signal quality before printing.
-Full alphanumeric key board with shortcut keys and also 5 inch color screen.
-Battery backup of more than 100 ECG printouts on thermal paper.
-Versatile recording modes auto, manual,recording of 2.2 sec, 3 sec, 5 sec and 10 sec
-Wide printer size of 106 mm to fit all leads properly without overlapping.
-Storage of all data on pen drive in PDF format.
-Optional to mail the ECG data in PDF format.
| -Technical Specification | |
|---|---|
| Lead :Standard 12 Leads | |
| A/D converter :16 Bit | |
| Frequency response: 0.05 HZ to 150 HZ | |
| CMRR : >=l00db | |
| Power supply: AC (1 10-240 V) 50/60 HZ | |
| Battery backup: 100 standard records on full battery charger | |
| Recording paper :106 mm x 20 meter (Roll) | |
| Recording channels:3+1 Auto, 3 leads manual printing / 6 x 2 format | |
| LCD: 5 inch display | |
| Lead off detection :Available | |
| Weight: Less than 2 Kg | |
ECG MACHINE
- Views: 689
-
Aussin Intensive Care Pvt Ltd - Product Code: AIC0000004
- Availability: In Stock
- ₹66,131
