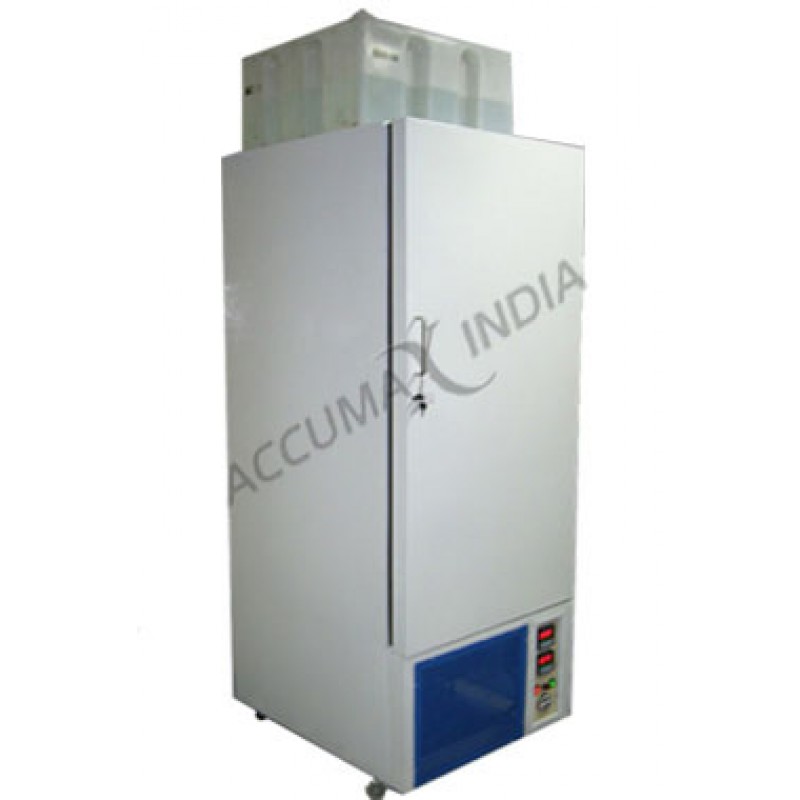

Conditioning Chamber offered comes with PUF insulated finish provided on the doors as well as mild steel construction from the outside that comes duly powder coated so as to provide for optimum functional support. The chamber also feature inner plexiglass door that facilitates easy viewing of the process without disturbing the inside maintained and regulated temperatures. The chamber also comprises outside metal door featuring magnetic gasket as well as lock & key support for secure process handling.

Features :

• Comes with support of perforated stainless steel trays
• Features caster wheel support for optimum mobility
• Comes with inside chamber fitted with blower to motor that ensures uniform temperatures from the inside
• Coming with microprocessor based PID controller for precision regulating temperature and humidity conditions
• Comes with cooling system support in form of hermetically sealed compressor
• Comes with conditioning chamber support for the laboratory that provides for conditioning of samples prior to testing (chambers designed to provide conditions
• from 20% to 98% RH± 2 and 0oc to 94oc ± 0.5oc)
• Made available in three capacities including -
• 1.5cu.ft/42litres, Internal with 325mm x 350mm x 325mm -13inch x 14inch x 13inch (HxWxD)
• 5.8cu.ft/165litres, Internal with 600mm x 500mm x 450mm- 24inch x 20inch x 18inch (HxWxD)
• 10cu.ft/280litres, Internal with 750mm x 600mm x 600mm - 30inch x 24inch x 24 inch (HxWxD)
• System supported by manual digital set - digital indicating controller that provides
• for optimum control of temperature and humidity
• Stainless steel shelf construction in 2 positions
• Featuring self contained heating, refrigeration support as well as steam generator humidifier
• Vapour - tight welded stainless steel interiors

Optional Extras:

• Used for research applications like for -
• Multiple channel automatic programmer that comes with ramp and soak facilities
• Self contained re-circulating humidity system that features 6 gallon reservoir support
• Extra stainless steel shelving support
• We also hold expertise in offering custom-designed as well as built chambers of desired capacities up to room size in conditions that are down to - 20oc on request

Technical Specifications :

• MOC Outer: Mild Steel Sheet Powder Coated
• MOC Inner: Stainless Steel
• Temperature & Humidity Controller: Microprocessor Based PID Type
• Temperature Range: 20oc To 60oc±1oc
• Insulation: PUFF
• Humidity Range (RH): 55% - 95%±5%
• Electrical Supply: 220/230V AC, 50/60Hz
• Inner Size (WxDxH): 455 x 410 x 610mm,505 x 415 x 830mm 570 x 550 x 875mm, 650 x 580 x 900mm
