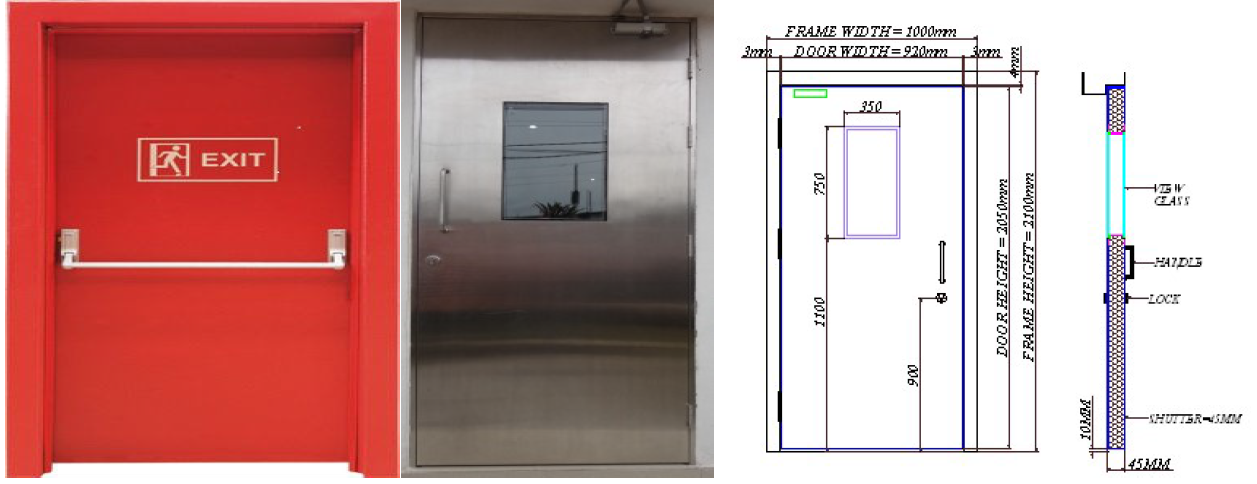

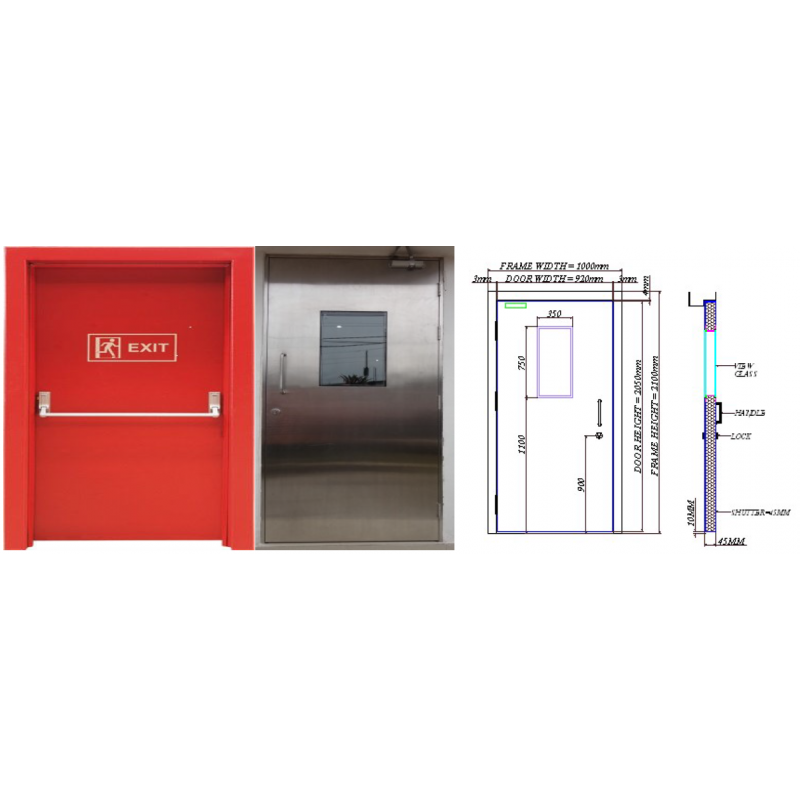

Single Rebated / Double Rebated Door

Material: CRCA Powder Coated / S.S 304 / Aluminum

Frame Thickness: 50 , 80 , & 100 mm

Sheet Thickness: 1.2 mm

Finish: Powder Coated Matt Finish

Shutter:

Shutter Thickness: 45 mm

Sheet Thickness: 0.8 mm

Finish: Powder Coated matt finish

Infill Material: Puff, Paper Honey Comb, Aluminum Honey Comb,

Rockwool.

Hardware:

Hinge: S.S 304 Ball Bearing Hinge

Handel: S.S 304 “D” Handle

Door Closer: TS-68 Std/Hold Open Arm

Drop Seal: Aluminum Cat-5

Gasket: Silicon

Lock: Mortise Lock with 70mm Cylinder

View Panel: Std 350 x 700 mm

Push & Kick Pleat: S.S 304
