Zonotech Lypholizer

Product Details :

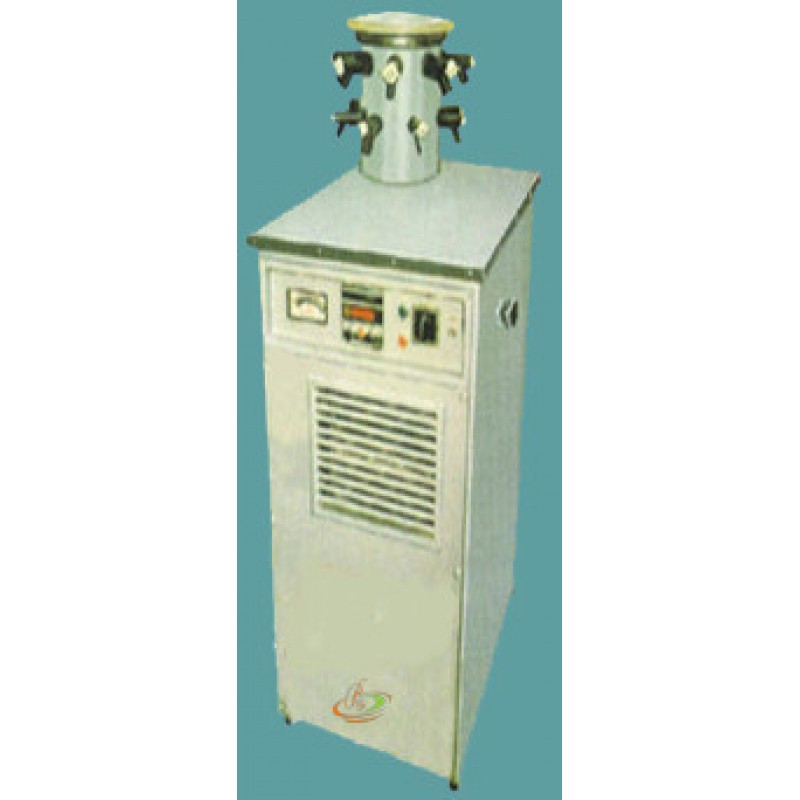

• An aesthetically designed cabinet gives a pleasant look. It is a free-standing Castor mounted unit. It is supplied with a powerful double-stage vacuum pump.
• Hermetically sealed compressor gives temperature upto -40°C (at ambient temp. 20°C)
• A condenser trap is provided of stainless steel dished bottom for complete effluent removal.
• Refrigerant coils made of copper are PUF insulated for maximum efficiency.
• Temperature is adjustable upto - 40°C and is maintained automatically by Microprocessor digital temp. controller.
• Vacuum drum having 22.8 cm dia and 25.4cm height is made up of nonmagnetic stainless steel with plexiglass top cover and incorporates 6/ 12 quick seal valves/ports for manifold drying.
• Double stage vacuum pump with gas blast giving vacuum 1×10³ turron Mc-Ieod Gauge.
• Suitable to work on 220V, 50 Hz AC supply.

Capacity :

• 3 liters for 6 tests, 5 liters for 12 tests
• Lypholizers are generally frozen dryers that are loaded in the controlled environment and then unloaded in sterile environments. These Lypholizers are manufactured using accurate and exact chemicals and materials required for its manufacturing.
• We make Ozone Friendly CFC/HCFC Free, all-purpose lab. Model Freeze Dryer (Lyophilizer) 5 Ltrs. Cap. Floor standing model size (31 x 22 x  approx.) housed in a Super Structure Frame and S.S. working top, with removable side panels, mounted on swivel castors for easy mobility, Refrigeration coils (Imported copper) bonded outside the condenser (for no damage to Refrigeration line), Foamed-in-place Poly Urethane (PUF) Insulation helps ensure Temp. stability & energy efficiency, Full view acrylic see-through lids, for condenser and drying manifold to observe the freeze-drying process continuously, and control instruments i.e. Digital solid-state Temp. Indicator LED for continuous display of temperature and electronic vacuum indicator for vacuum measurement.
