Wire Torsion
Product Details:

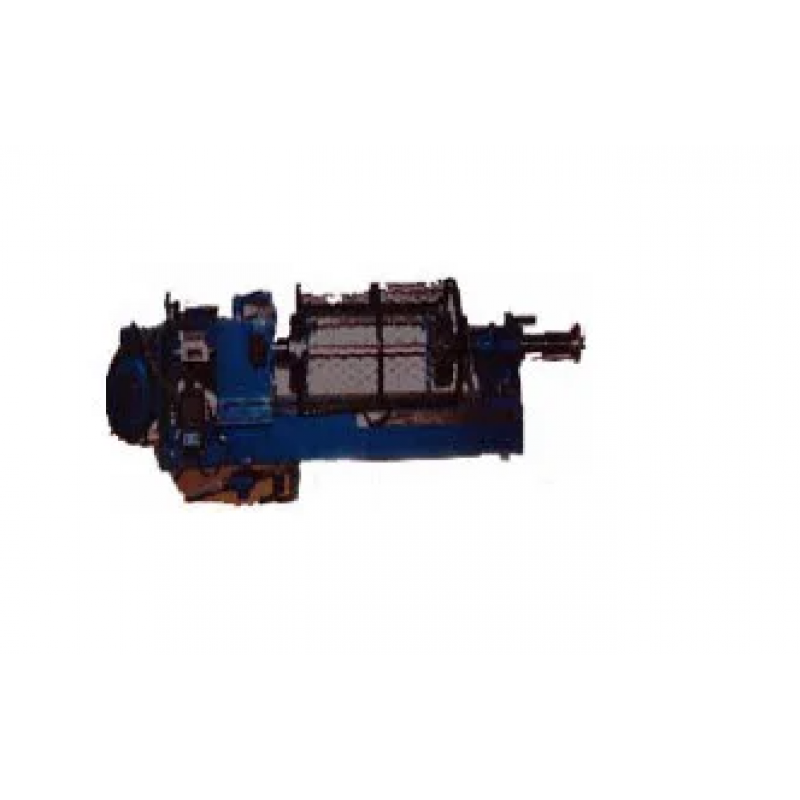

Torsion Testing Machine for Wire Elect- Operated The number of twists required of fracture a wire sample can be determined rapidly with this machine. The standard machine consists of three speed gear box coupled with a motor to give output of 30,60 & 90 rpm. A revolution counter indicates the fails. The distance between the rotating and non-rotating chuck can be altered between 1-500 mm length. The wire is held in between these two chucks. The wires from 1 to 10 mm can be tested with this machine. The machine is electrically operated suitable for operation on 400/440 volts, 3 phase, A.C. supply. The machine is available in two models on for testing wires in the range of 1-5 mm and other 4-10 mm. .Altered between 1-500 mm length. The wire is held in between these tow chucks. The wires form 1 to 10 mm can be tested with this machine. The machine is electrically operated suitable for operation on 400/440 volts, 3 phase, A.C. supply. The machine is available in two models one for testing wires in the range of 1-5 mm and other 4-10 mm.
