Wire / Cable Scrape
Product Details:
For evaluating the abrasion resistance of wire or cable, Taber Industries offers the follow options.

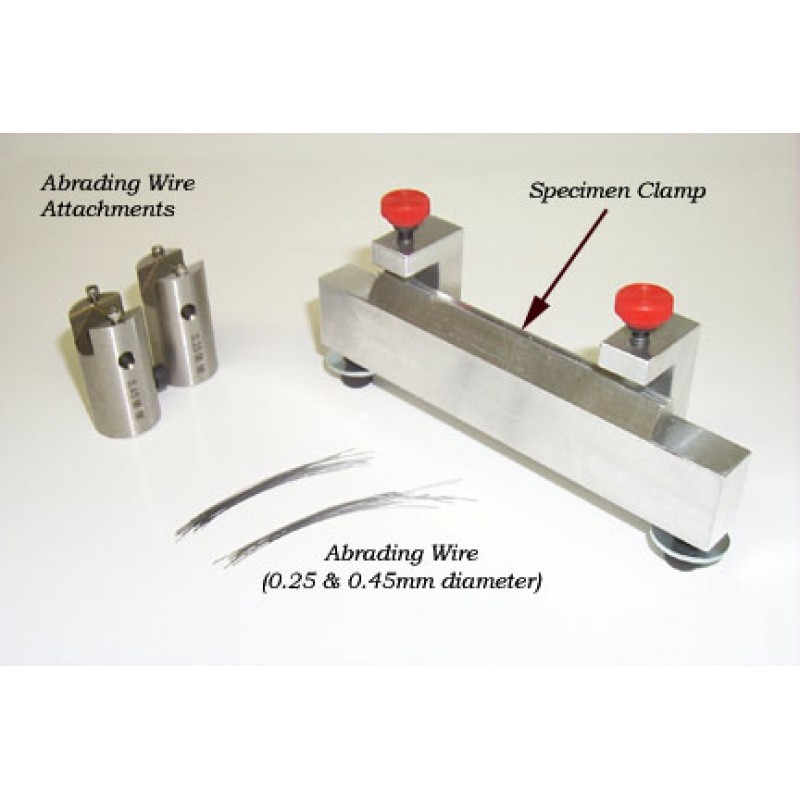

The Taber® Scrape Abrasion Kit enables you to use Tabers Linear Abraser Model 5750 and T-Slot Table (sold separately) to test the resistance to scrape abrasion of cables and wire.  Based on ISO 6722, this accessory was designed to evaluate single-core cables, with a conductor size of 6 mm2 or less, intended for use in road vehicle applications.  Note, the maximum diameter wire the holder will accommodate is approximately 6 mm diameter. Two attachments are provided with this kit permitting scrape abrasion with either the 0.25mm or 0.45mm diameter abrading wire.
