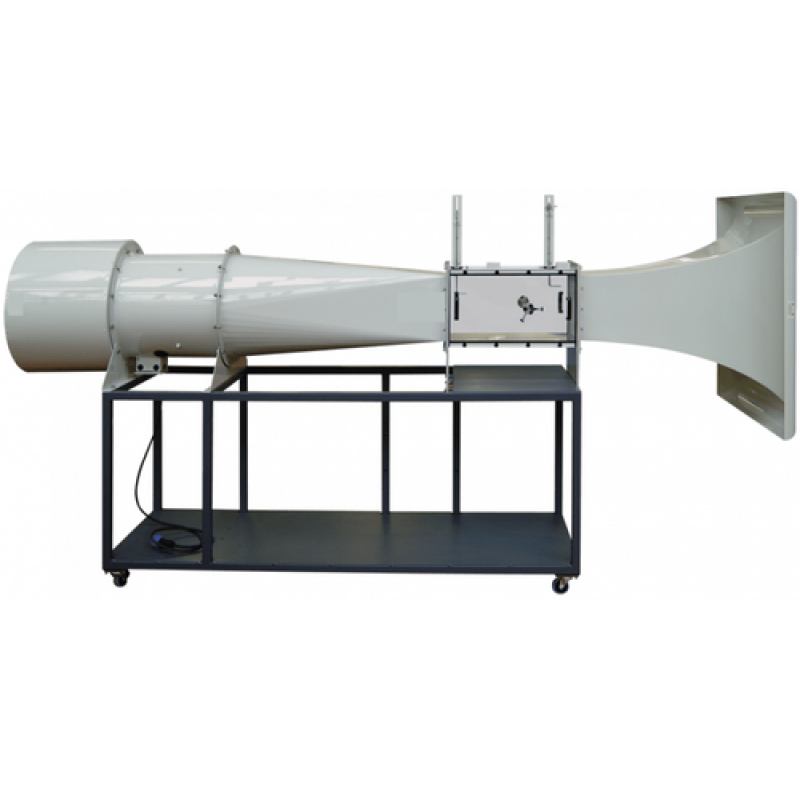

Wind tunnel test rig

Product Details:

Country of Origin	Made in India
model number	SSIFMHL-003
brand name	saini
- Wind tunnel	Open type wind tunnel
- Test section	300 X 300 X 1000 Cm
- Axial fan	Compatible capacity.
- Drive	3 HP motor with speed controller
- Air velocity	Maximum 30 m/s in test section
- Digital force indicator	For lift and drag force
- Multiple manometer	0-40 Degree inclination with vertical axis
- Pitot static tube	For velocity measurement
- Micro-pitot tube	For boundary layer experiment.
- U tube manometer	Length 500 mm
- Inclined manometer	300 mm

SAINI SCIENCE INDUSTRIES manufacture of Wind Tunnel Test Rig (Variable Speed with AC motor ).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Wind tunnel  Test Rig (Variable Speed with AC motor). WIND TUNNEL has been developed to perform various experiments of aerodynamics and fluid flow. This is a open circuit Wind Tunnel provides a region of controlled air flow into which models can be fitted at downstream of working section. The Tunnel consists of bell mouth shaped entry to guide the air smoothly into settling chamber and stabilizes the air flow this follows working section for test section where various models can be tested. Test section with acrylic sheet, will be provided for visual observation. Working section is followed by diffuser section which reduces the dynamic pressure at the exit. A fan coupled with motor is used to produce desired wind velocity.
