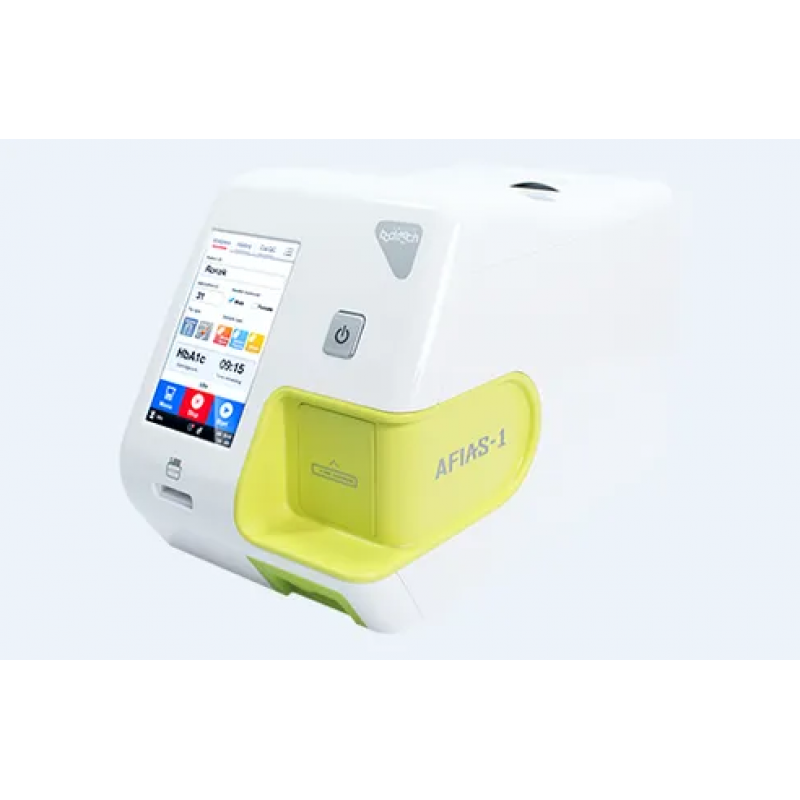

Weldon AFIAS-1 Automated Fluorescent Immunoassay System

Model Name/Number	AFIAS-1
Brand	Weldon
Throughput	Max. 10 tests per hour (different depending on item)
Power Supply	100-240 V AC, 50-60 Hz, 1.5 A
Weight	3.9 kg
Dimensions	320 mm (L) x 204 mm (W) x 180 mm (H)
Data Output	5" touch color LCD
Communication Ports	USB 4 ports,LAN port,RS-232
Temperature Range For Operation	15 ~ 35 DegreeC\
Temperature/Humidity	Temperature -20 ~ 50 DegreeC,Humidity Max. 70%
Test Result Storage	Patient test results (5,000) / System check results (100) Standard material (control) test results
Save Of Id Chip Information	500 ID chips (Max. 5 LOTs per each item)

AFIAS-1 (AFIAS-automated fluorescent immunoassay system) is an automatic immunoassay system that measures the concentration of a targeted analyte in a sample, using quantitative or semi-quantitative methods using blood, urine, and other samples. The AFIAS-1 reader is easy to carry and has a simple structure. Also, AFIAS-1 uses all-in-one cartridges which automates the entire procedures from sample preparation to test when user loads sample only.
Since AFIAS-1 uses a single channel, it is optimized for small and mid-sized hospitals (or clinics) testing up to 10 samples per hour. For some tests, such as TSH, CRP, PCT, and HbA1c, a quantitative test can be performed using a small sample (10uL or 50uL) of whole blood from a finger or heel using an applicable C-tip (capillary tip).
