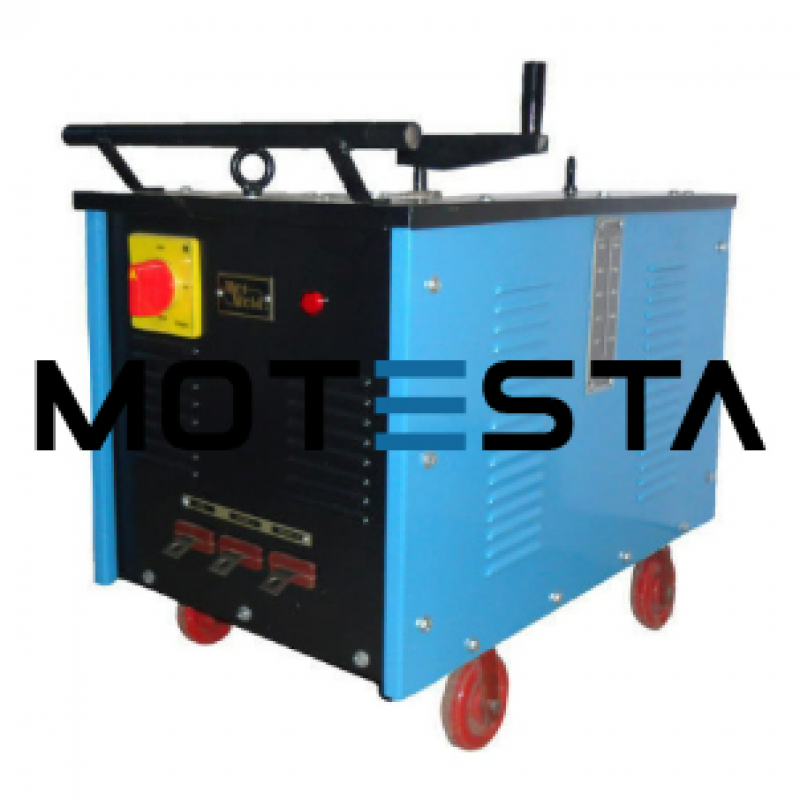

Welding Transformers
Weldeing Transformers
100 Amps
150 Amps
200 Amps
300 Amps
400 Amps
600 Amps
Welding Current Range
Amps
25 to 100
35 to 150
45 to 200
60 to 300
90 to 400
100 to 600
Welding Volt Range
Volts
20 to 25
24 to 30
24 to 30
24 to 32
25 to 38
25 to 38
Continuous Hand Welding Current @ 55% Duty Cy.
Amps
75
120
150
240
300
480
Max. Intermittent Current @ 35% Duty Cy.
Amps
100
150
200
300
400
600
Continuous Welding Current @ 100% Duty Cy.
Amps.
50
80
105
170
210
310
Open Circuit Voltage
Volts
40
50
50
60
60
80
Electrode Size (Cont.)
Swg.
12 to 16
10to 16
10 to 14
10 to 14
8 to 16
6 to 16
Electrode Size (Intermediate)
Swg.
10
10
10
7
6
4
Rated K.V.A.
—
4
6
8
15
20
25
Fuse Rating Max. @ 440 V
Amps
—
15
20
45
60
80
@ 230V
Amps
25
30
40
70
—
—
Recommended Capacitor for Power
Factor Improvement
3KVA 5KVA 6KVA 12KVA
Primery Supply
Single phase 230 Volts, 550 Cycles, A.C.Supply
Three Phase 400 / 440 Volts, 50 Cycles, A.C. Supply
(2 Lines of 3 Ph.) Weight (Approx)
Kgs.
35
90
120
160
190
220
|
| 100 Amps | 150 Amps | 200 Amps | 300 Amps | 400 Amps | 600 Amps |
---|---|---|---|---|---|---|---|
Welding Current Range | Amps | 25 to 100 | 35 to 150 | 45 to 200 | 60 to 300 | 90 to 400 | 100 to 600 |
Welding Volt Range | Volts | 20 to 25 | 24 to 30 | 24 to 30 | 24 to 32 | 25 to 38 | 25 to 38 |
Continuous Hand Welding Current @ 55% Duty Cy. | Amps | 75 | 120 | 150 | 240 | 300 | 480 |
Max. Intermittent Current @ 35% Duty Cy. | Amps | 100 | 150 | 200 | 300 | 400 | 600 |
Continuous Welding Current @ 100% Duty Cy. | Amps. | 50 | 80 | 105 | 170 | 210 | 310 |
Open Circuit Voltage | Volts | 40 | 50 | 50 | 60 | 60 | 80 |
Electrode Size (Cont.) | Swg. | 12 to 16 | 10to 16 | 10 to 14 | 10 to 14 | 8 to 16 | 6 to 16 |
Electrode Size (Intermediate) | Swg. | 10 | 10 | 10 | 7 | 6 | 4 |
Rated K.V.A. | — | 4 | 6 | 8 | 15 | 20 | 25 |
Fuse Rating Max. @ 440 V | Amps | — | 15 | 20 | 45 | 60 | 80 |
@ 230V | Amps | 25 | 30 | 40 | 70 | — | — |
Recommended Capacitor for Power |
| ||||||
Factor Improvement | 3KVA 5KVA 6KVA 12KVA | ||||||
Primery Supply | Single phase 230 Volts, 550 Cycles, A.C.Supply | ||||||
(2 Lines of 3 Ph.) Weight (Approx) | Kgs. | 35 | 90 | 120 | 160 | 190 | 220 |
