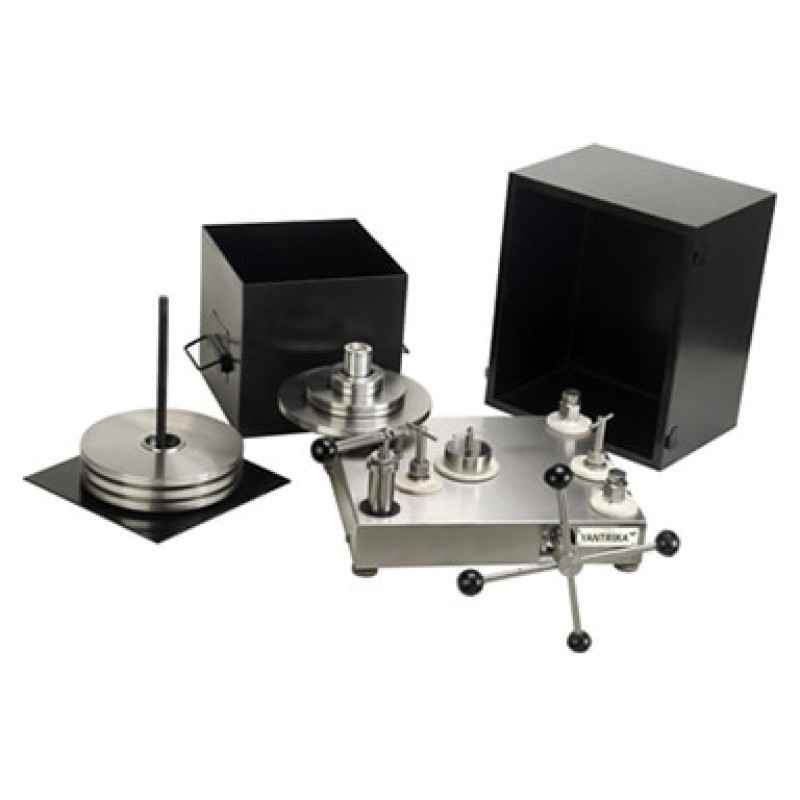

Dead Weight Tester for Hydrotesting

Product Details :

Dead Weight Testers are the most accurate and stable pressure standards and are widely used in industry, academia and research institutes to calibrate pressure measurement devices like pressure transmitters, pressure gauges & hydrotesting of pipeline.

Applications:

Hydrotesting of pipeline. Measurement of pressure, calibration of pressure transmitter, pressure gauges and pressure switches.

Standard Features:

• Accuracy : 0.015%, 0.008% of reading
• Over All Range:10-700 bar, kg/cm2 or 100-10000 psi
• Operating Fluid: Hydraulic Oil & Water
• Fine least count, Extra Gauge Connector & Hose filling / priming pump

Standard Accessories:

• 1/8", 1/4", 3/8", 1/2" BSP Adaptors
• Instruction Manual, Spare Seals,Dust Cover
• Set of Weights in Carry Box, Tool Bag
• Hydraulic Fluid (1/2 Liter) & Seal Kit
• Traceable Calibration Certificate

Operating Principle:

Fluid Pressure generated by a screw pump acts on the bottom of a vertically free floating piston. The force produced pushes the loaded free piston vertically upwards. The piston floats freely in its cylinder and the pressure in the circuit will be determined by the weights loaded on the piston divided by the effective area of the piston with corrections for value of acceleration due to gravity, air buoyancy, surface tension and datum level difference.

Materials of Construction:

• Piston: Tungsten Carbide/HCHC
• Cylinder: Tungsten Carbide/HCHC
• Internals: Austenitic 300 series Stainless steel
• Mass Set: Austenitic 300 series Stainless steel

Standard Parameters:

• Gravity: 9.80665 m/s²
• Temperature: 23º Celsius
• Air Density: 1.2 kg/m³

Standard Manufacturing Program*:

Oil Operated Models
