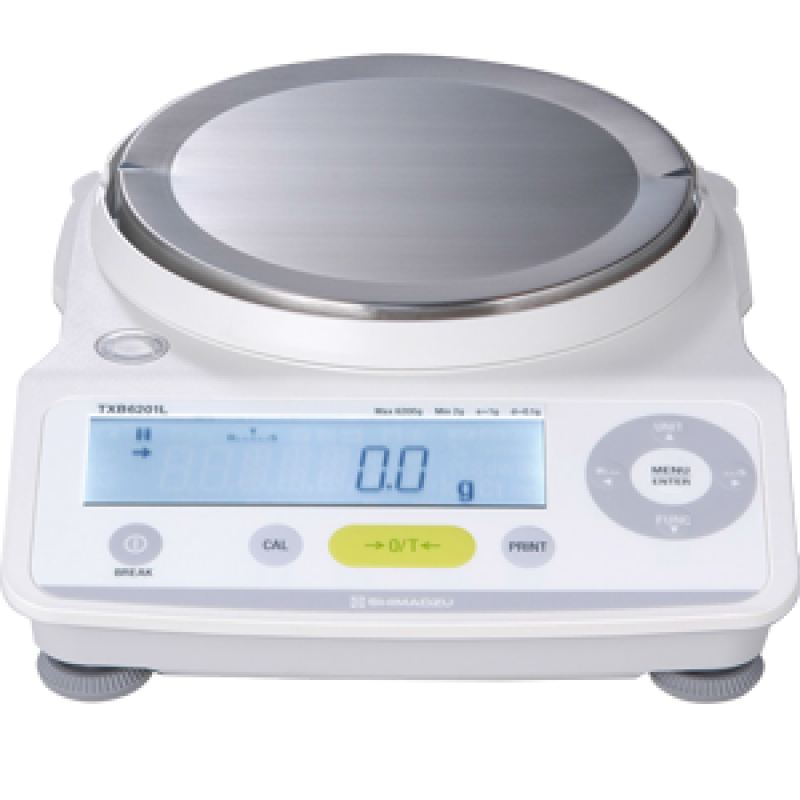

TX/TXB/TW Series
Product Details :
TX/TW series
Model | TX223L / TW223L | TX323L / TW323L | TX423L / TW423L | TX2202L | TX3202L | TX4202L |
Capacity | 220 g | 320 g | 420 g | 2200 g | 3200 g | 4200 g |
Minimum Display | 0.001 g | 0.001 g | 0.001 g | 0.01 g | 0.01 g | 0.01 g |
Repeatability | 0.001 g | 0.01 g | ||||
Linearity | ±0.002 g | ±0.02 g | ||||
Operating Ambient Temperature (°C) | 5–40 | |||||
Temperature Coefficient Sensitivity (ppm/°C) (10–30°C) | ±3 | |||||
Pan Size (mm) approx | ø110 | 167(W) × 181(D) | ||||
Main Body Dimensions (mm) approx | 206(W) × 291(D) × 241(H) | 200(W) × 291(D) × 80(H) | ||||
Weight (kg) approx | TX: 3.8 k g TW: 4.2 kg | 2.8 kg | ||||
Power Requirements | 12V, 1A | |||||
TXB series
Model | TXB222L | TXB422L | TXB622L | TXB2201L | TXB4201L | TXB6201L | TXB621L | TXB6200L |
Capacity | 220 g | 420 g | 620 g | 2200 g | 4200 g | 6200 g | 620 g | 6200 g |
Minimum Display | 0.01 g | 0 .1 g | 1 g | |||||
Repeatability | 0.01 g | 0 .1 g | 1 g | |||||
Linearity | ±0.01 g | ±0.02 g | ±0.1 g | ±0.2 g | ±0.1 g | ±1 g | ||
Operating Ambient Temperature (°C) | 5–40 | |||||||
Temperature Coefficient Sensitivity (ppm/°C) (10–30°C) | ±15 | ±10 | ±5 | ±15 | ±10 | ±5 | ±20 | |
Pan Size (mm) approx | ø110 | ø160 | ø110 | ø160 | ||||
Main Body Dimensions (mm) approx | 199(W) × 260(D) × 77(H) | |||||||
Weight (kg) approx | 1.5 kg | |||||||
Power Requirements | 12V 1A or 6AA batteries | |||||||
