Product Description
We are engaged in trading and supplying excellent quality Gold Purity Tester CGX-102 (Silicon Pin Detector) in Ahmedabad, Gujarat, India.
Specifications:
- Detectable elements : Titanium to Uranium.
- Measurement Results : Iron (Fe), Cobalt (Co), Nickel (Ni), Copper (Cu), Zinc (Zn),Ruthenium (Ru), Rhodium (Rh), Palladium (Pd),Silver (Ag), Cadmium(Cd), Indium (In), Tin (Sn),Osmium (Os), Iridium (Ir), Platinum (Pt), Gold (Au). All metals separately.
Accuracy of measurement :
- +/-0.15% (Molten Metal above 90% Au)
- +/-0.3% (Molten Metal below 90% Au)
- +/-0.5% (Molten Metal below 50% Au)
- Sensor : Silicon-Pin Diode
- Cooling for Detector : Thermoelectric
- Detection Range : 0.1%-----99.99%
- Testing Time : 30-----200 secs
- Test Spot Area : 0.5mm
- Power Supply : 90-240 V AC, 50/60HZ
- Power Rating : 30 Watt
- Working Temperature : 15-25oC
- Relative humidity : <70%
- Operation atmosphere : Vibration free surface and air conditioned room
- Interface for Computer : Inbuilt (External Monitor, Keyboard required)
- Software for Operation : Menu Driven User Friendly Operating System
- Dimensions of Instrument: Length : 335mm, Width : 225mm, Height : 210mm (with test compartment cover in : closed position) & 565mm (in open position).
- Dimensions of Sample Chamber : Length : 235mm, Width : 195mm, Height : 80mm
- Net Weight : 12kg

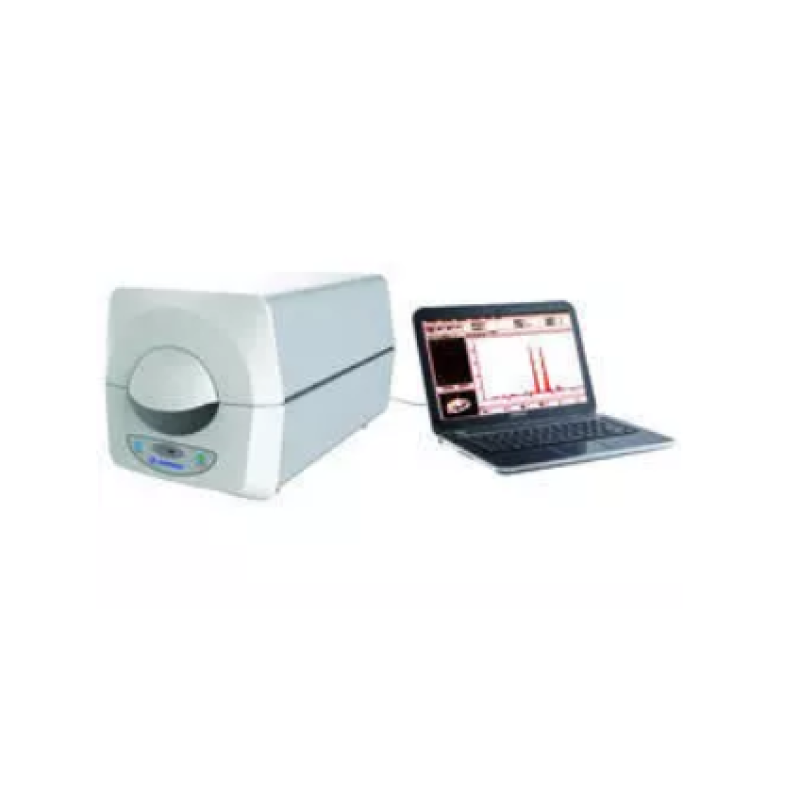

Gold Purity Tester CGX-102 (Silicon Pin Detector)
