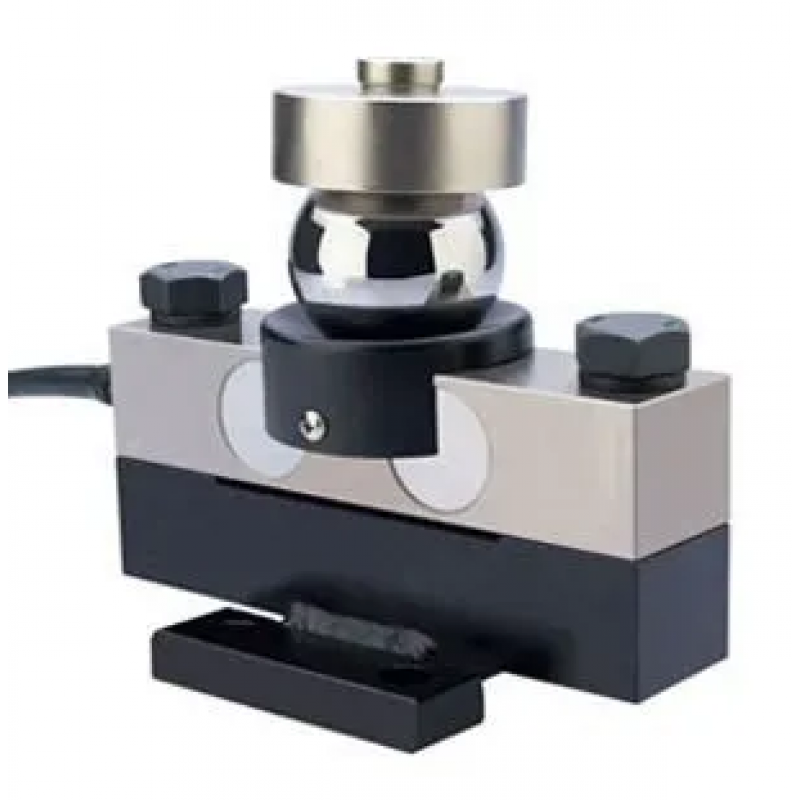

Weigh bridge Load Cell
Product Details:
| Brand | Keli |
| Model | QS |
| Capacity | 30 Ton |
| Material | Alloy Steel |
| Ingress Protection | IP67 |
| Load Cell Certifications | OIML |
| Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
| Creep Error (30 minutes) | +/- 0.02% F.S |
| Temperature Effect on Zero | +/- 0.02% F.S/DegC |
| Temperature Effect on Output | +/- 0.02% F.S/DegC |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 250% FS |
| Recommended Excitation Voltage | 10 to 12V DC |
| Input Resistance | 750 +/-10 Ohm |
| Output Resistance | 702 +/-3 Ohm |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperatue Range | -30 to +70 Deg C |
Weigh bridge Load Cell
- Views: 34
- Vendor: Swastik Systems & Services
- Vendor Type: Manufacturer, Supplier
- Product Code: SS00000018
- Availability: In Stock
- ₹0
