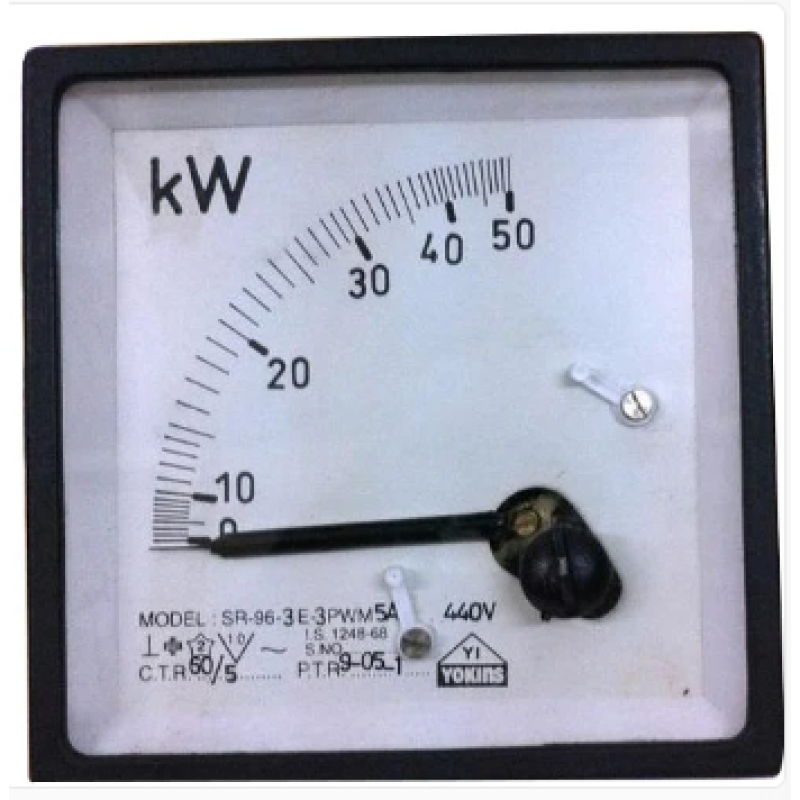

Watt Meter And Power Factor Meter

Our Power factor and watt meters are based on dynamo metric principle and comes in both single phase and three phase models. Dynamo metric instruments for measurement of absolute power in single phase and three phase systems for balanced/unbalanced load conditions.

Specification:

• Movement Type: Current coil in series of load & pressure coil across the load
• Work on “Air cored Electro Dynamo metric” principle
• Range: Current (A): 1 A to 10 A AC Direct and for higher ranges through CT/1 A or /5 A
• Voltage (V): 110 V / 220 V/ 440 V and through PT for Higher Voltage
• Standards: IS-1248
• Accuracy: Watt Meter: ±1.5% of Full Scale
• Power factor Meter: ±2° Phase Angle
• Size: 96 x 96 mm, 144 x 144 mm
