We are offering our esteemed clients an extensive range of Constant Temperature Water Bath and Muffle Furnace. The entire range is manufactured in accordance with the latest technological advancements.

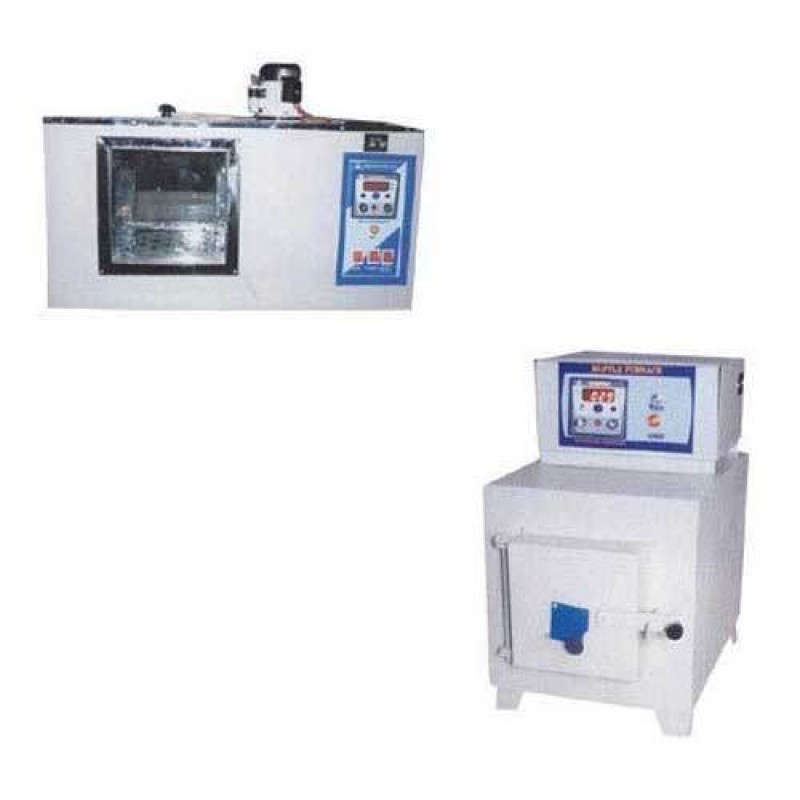

Constant Temperature Water Bath

The premium range of constant temperature water bath offered by us is acknowledged for efficient and maintenance free operations. These are available in various sizes, and can also be customized as per the client’s requirements.

Size Available

S. No. Capacity Dimensions

1    2 rack    25x15x17cm

2    4 rack    35x 25x17cm

Features

• Double walled construction.

• Stainless Steel fabricated inner chamber and lid.

• Outer chamber constructed with powder coated mild steel.

• Glass window fixed on the front for both sides, to provide a clear view during the immersion test.

• To prevent heat loss, there is high grade glass wool between the chambers to minimize the loss of heat.

• Working temperature range from ambient to 100°C, which is controlled by digital temp, indicator cum controller with ± 0.5°C of accuracy.

• For continuous stirring and maintaining uniform heating throughout the chamber, there is speed stirrer motor 1/20 HP is fitted in the unit.

• The heating mechanism comprises of set of heaters.

• Designed for external circulation to maintain constant temp and immersion requirements.

• Operates at 230 Volts AC only.


Muffle Furnace

We are offering an extensive range of Muffle Furnace, which are widely used in chemical and other related industries. These are fabricated using high grade raw material to ensure optimum quality in the final product. Our muffle furnace is available in various customized options, as per the specifications provided by our clients.

Some of the salient features of muffle furnace encompass the following:

• Light weight and fast heating equipment.

• Beneficial for ashing, fissions, igniting and heat treating of small parts in chemical, industrial fields, colleges.

• Outside body fabricated with heavy gauge M.S /G.I duly powder coated.

• High temperature insulating material used for inner muffle.

• Maximum temperature capacity 1000°C/1200°C.

• Working temperature 930°C/1130°C.

• Heating elements made up of kanthal wire, extremely beneficial for the muffle.

• Digital temperature controller cum indicator used for controlling temperature.

• Uniform distribution of heat with kanthal wire.

• Control panel equipped with indicating lamps & switches.

• For protecting the elements in case of over heating, there is a special solid state silver fuse.

• Operates on 230 Volts A.C only.
