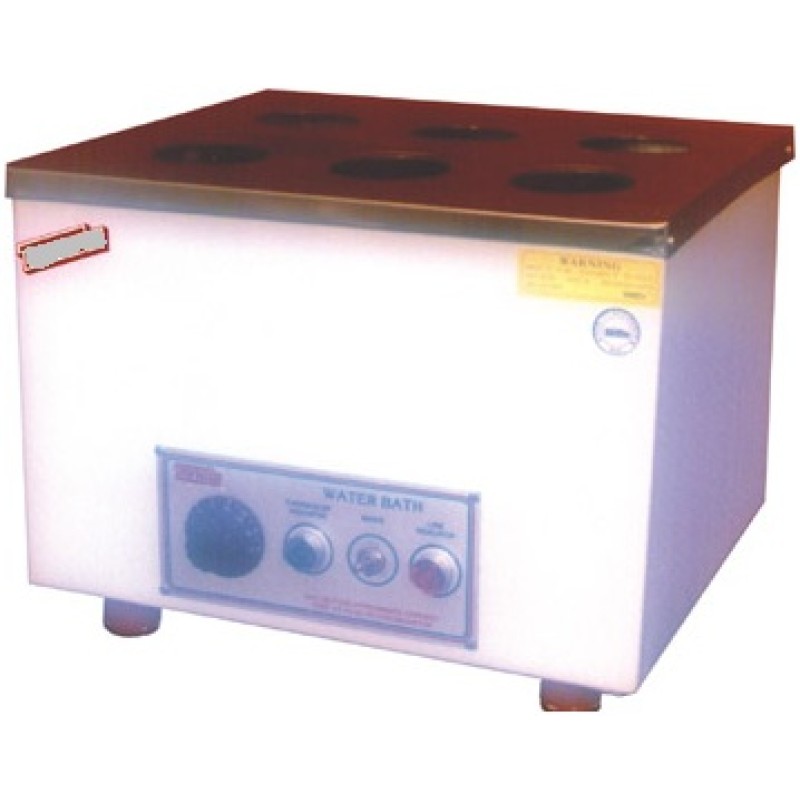

Water Bath Rectangular Single Wall “ISIC”

 Product Details :

Water bath is made a thick stainless steel sheet of 304 grades. Heating element of ISI mark has an automatic cut out device. Complete with Concentric rings. To work on 220/230 Volts A.C.

Size

L x B x D

300x250x100 mm (6 Holes of 75 mm Dia)

425x325x100 mm (12 Holes of 75 mm Dia)

Spare Element for above :

6.1)Water Bath Rectangular Double Wall: (without thermometer) “ISIC” Double walled, inside made of stain less steel 304 grade and out side mild sheet painted with attractive stove enamel. Temperature is controlled by a hydraulic thermostat from 5ºC above ambient to 100ºC with sensitivity of + 0.5ºC fitted with ISI mark Tublar Element. Bath consists of 2 pilot lamps & on/off switch, to work on 220/230 Volts A.C.

Size of inside Stainless Steel Tank

L x B x D

300x250x100 mm (6 Holes of 75 mm Dia)

425x325x100 mm (12 Holes of 75 mm Dia)

If fitted with PID Microprocessor Controller Dual Display instead of Thermostat will cost extra

6.2) Serological Water Bath Thermostatic Controlled:(without rack and thermometer)    “ISIC”

Double walled, inside made of stain less steel 304 grade and out side mild sheet painted with attractive stove enamel. Temperature is controlled by a hydraulic thermostat from 5ºC above ambient to 100ºC with sensitivity of + 0.5ºC fitted with ISI mark Tublar Element. Bath consists of 2 pilot lamps & on/off switch, to work on 220/230 Volts A.C.

Size of inside Stainless Steel Tank

L x B x D                                                             Litres App.

300x250x175 mm (for 2 racks)                              13

325x300x175 mm (for 4 racks)                              17

450x300x175 mm (for 6 racks)                              23

600x300x175 mm (for 8 racks)                              31

Note : Traceability & calibration certificate of controller is also provided
