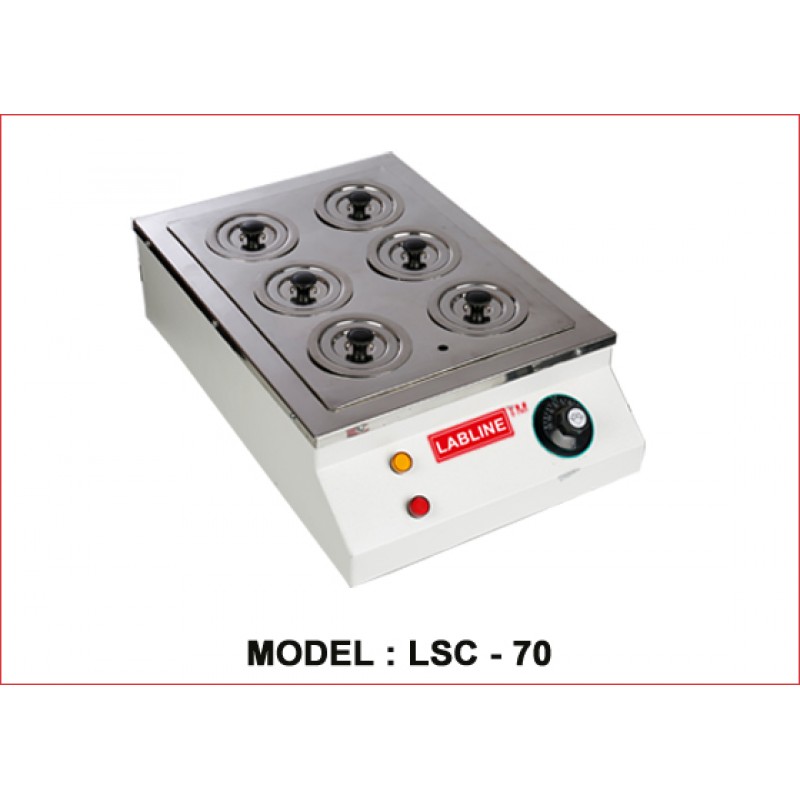

Water Bath Rectangular

Unique Features :

• Ergonomic Design
• Easy to use
• Negligible Maintenance
• Better Uniformity

Construction :

• Double walled Construction, Inner made of Stainless Steel 304 Q mirror finished & Exterior made of Stainless Steel Matt finish / Mild Steel powder coated.
• Gap between the walls is filled with special grade glass wool for proper insulation to avoid heat loss and thereby saving energy.
• Diameter of holes 3" with Concentric Rings & I.S.I Mark Heating Element.

Technical Data :

• Temp. Range :50C above ambient to 990C
• Accuracy : ± 1°C
• Temp. Control : Temperature Controlled by Thermostat OR
• Digital Temp. controller : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.10C . Dual display one for process value (PV) & the other for Set Value of Tempreture (SV)
• Power Supply : 230 Volts A.C 50 Hz Single Phase
