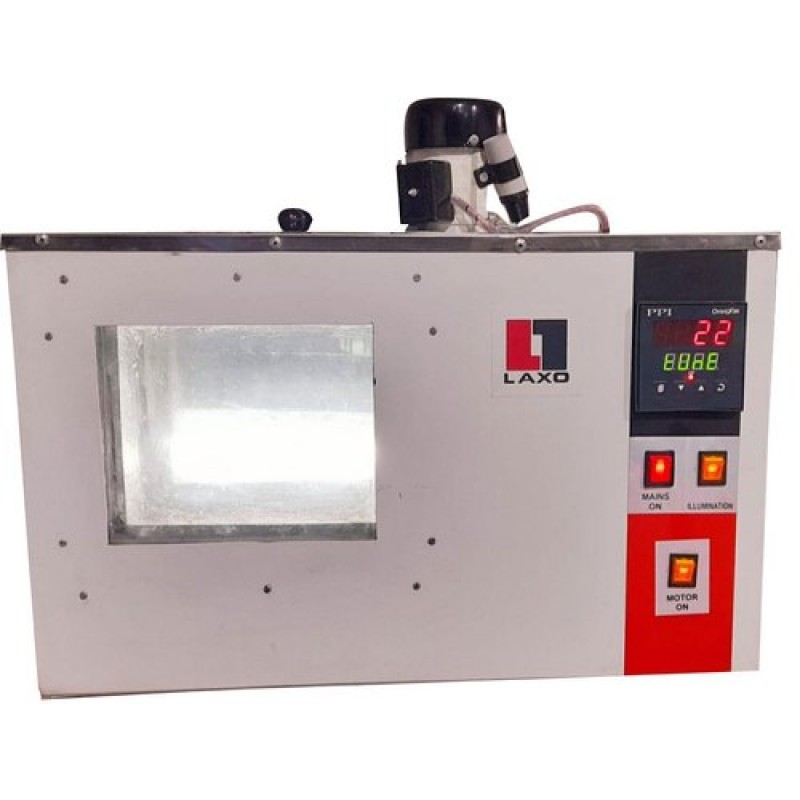

Viscosity Bath

Product Details :

Details:

• Construction :Double walled, exterior of MS  powder coated & inner chamber of  S.S. 304, with  insulation, S.S. Lid on top with provision fro Holding viscometer holders
• Circulations : Efficient motor of 1440 RPM Top mounted is installed for stirring to get temp uniformity
• Heaters : S. S. Tubular Heaters for maintaining of temp.
• Temp Range : Above ambient to 120 C
• Accuracy : ±0.1ºC TO 0.5ºC
• Temp. Control : Solid State Electronic Digital Temp. Control Panel housing all the control switches with PT – 100 sensor.
• Optional : Models available as per GMP, Complete S.S unit, Strip Chart Recorder. Microprocessor based PID temp. Control with printer interface, RS 232 CPC, RS-485 interface for multiple networking of controller.

MODEL

• LXVM04
• LXVM06

Internal Dimensions (LXBXD)

• 250 x200 x 300
• 350 x 200 x 300

Capacity VM

• 4 VM
• 6 VM

Temperature Range

• Amb.  to 120 OC

Controller (OPTION)

• Microprocessor based digital temperature indicator-cum-controller
• Display (OPTION)
• Digital LED with set value (SV) process value (PV)

Temperature Sensor

• PT 100
• Stirrer Motor
• SS  stirrer with 1440 RPM

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
• Delivery Time: 3 Days
• Packaging Details: Wooden Packing
