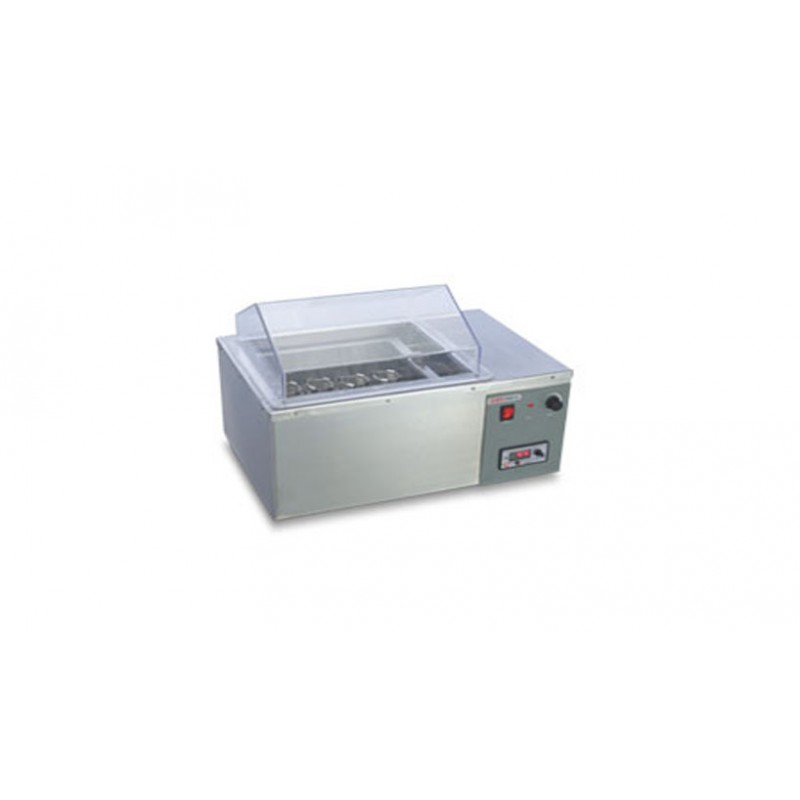

Refrigerated Water Bath Shaker

Spire Automation & Innovation manufacturers and supplies water bath of various sizes, range & types depending on needs designed to meet the challenging demands of various scientists, specialized research applications, engineering and pharmacy colleges, pharmaceutical & chemical industries. We offer Serological Water Bath, Rectangular Water Bath, Water Bath Incubator Shaker, Refrigerated Water Bath Shaker, Refrigerated Water Bath.

Salient Features

• Double walled construction
• Inner chamber made of stainless steel SS-304 and outer chamber made of mild steel duly powder   coated (SS optional)

• Temperature range +5°C to 95°C with an accuracy of ±1°C
• PUF insulation to ensure temperature stability & reduced energy consumption

• Electronically controlled shaking motion from 30 – 180 rpm
• 25 mm orbital / reciprocating action

• Supplied with one shaking tray as standard accessory
• Universal Plate form: To accommodate different capacity of flasks -100 ml, 250 ml, 500 ml, 1000 ml (Optional)

• Microprocessor based digital PID temperature indicator cum controller
• Digital display of SV & PV
• RTD (Pt-100) temperature sensor
• Timer or continuous operation

• 0-99 minutes timer or continuous operation
• Independent digital displays for shaking speed and timer function

• It works on 230V AC.

  Specifications

Optional

• RS 232 communication port with software for data acquisition
• Outer body made of SS 304

• Digital timer – It start automatically when set / desired value of temperature is attained. When the set time period is over the heaters get switched off automatically and unit sounds a Buzzer alerting the user that the process is complete.
