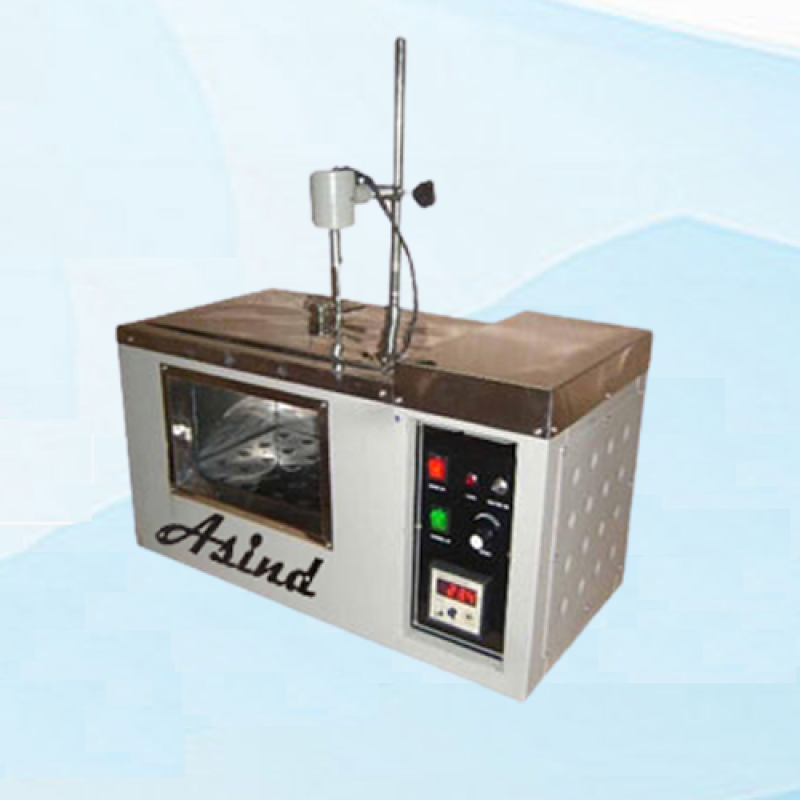

HIGH PRECISION WATER BATH
HIGH PRECISION WATER BATH
Product Details:
CONSTRUCTION:-
Temperature range from few degrees above ambient temperature to 100˚C. Temperature is controlled by digital electronics temperature indicator cum controller with sensitivity of ± 0.3˚C. Suitable for all applications requiring constant temperature with high degree accuracy. Double walled inside Stainless steel and outside made of Mild steel sheet. The bath is fitted with three nickel chromium immersion heater of 750W, 250W & 125W and each element has separated ON/OFF switch. A glass window is fixed on the front. Complete with stirrer, with speed Regulator, Operates on 220/230 volts A.C Supply.
FEATURES:-
  • Small or Large capacity tank.
  • Heater element. Top cover & other walled parts with 304 grade S. Steel for years of Life & ease of daily clean.
  • Drain Plug made of Brass duly Nickled on the back of the Bath
  • User’s Self-compensation function to control difference between real temperature and indicated temperature.
  • Flat Stainless Steel Lid prevents evaporation and keeps constant temperature.
  • Industrial grade energy efficient heaters reduces power bills drastically.
  • Double walled construction.
  • Full feature with Digital Temp. Controller / Indicator & Microprocessor Based PID Temperature Controller (on customer request)
  • With 1/20 HP High speed motor with Regulator or 1/70 HP Pump Stirrer with steel shaft for better Circulation.
  • Stability up to 0.5°C or better.
  • Better Mineral/Glasswool Insulation to keep surface Temp. comfortable.
  • Sealed glass window / Toughened glass at front for observation of material.
  • (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
  • (Outer): Outer chamber is made of M.S. sheet duly powder coated.
  • To work on 220/230 AC supply.


TECHNICAL SPECIFICATION INFORMATION:-

MODEL NO
ASI-WB-HP
ASI-WB-HP-(D)
Inner Dimensions (LXWXD)
430x240x265 mm
430x240x265 mm
Capacity
28 ltrs
28 ltrs
Window OPTION
Without See Through Window
With See Through Toughened Glass Window
Heating Load
2.0 KW
2.0 KW
Temperature controller
Microprocessor Based PID Digital Temperature Indicator-cum-Controller.
Temperature Range
From ambient to + 5ºC to 80ºC
Temperature Accuracy
± 0.5ºC
Temperature Sensor
RTD (Pt-100)
RTD (Pt-100)
Timer In-Built
N.A.
Digital display in min/hr
Alarm
N.A.
End of cycle buzzer
Temperature Display
With Digital LED Display for Set Value (SV) & Process Value (PV)
