Constant Temperature Water Bath

Product Details :

Description:

Water bath are constant temperature bath units and volumes are available as 12 liters, 18 liters, 25 liters, 32 liters and more.water bath are equipped with immersion heating system for temperature control between ambient+5°C to 99°C range. Models of economical price range have only thermostatic temperature controller and advance constant water bath units are equipped with digital PID temperature controller having both SV and PV display. Timer is optional and can be fitted on special request.

Water baths feature double walled construction having thick glass wool insulation on 5 sides to ensure minimum heat loss. The inner chamber is made of thick gauge of stainless steel 304 grade sheets and so carefully designed that cleaning becomes an easy job; only mild detergent cleaning with sponge as maintenance. Each unit is supplied with stainless steel perforated tray to place slides and flasks on them. To remove waste water a drain tap is provided at rear side of water bath; other standard fittings are machine on/off switch, pilot lamp and power cable with three pin top.

Standard Size:

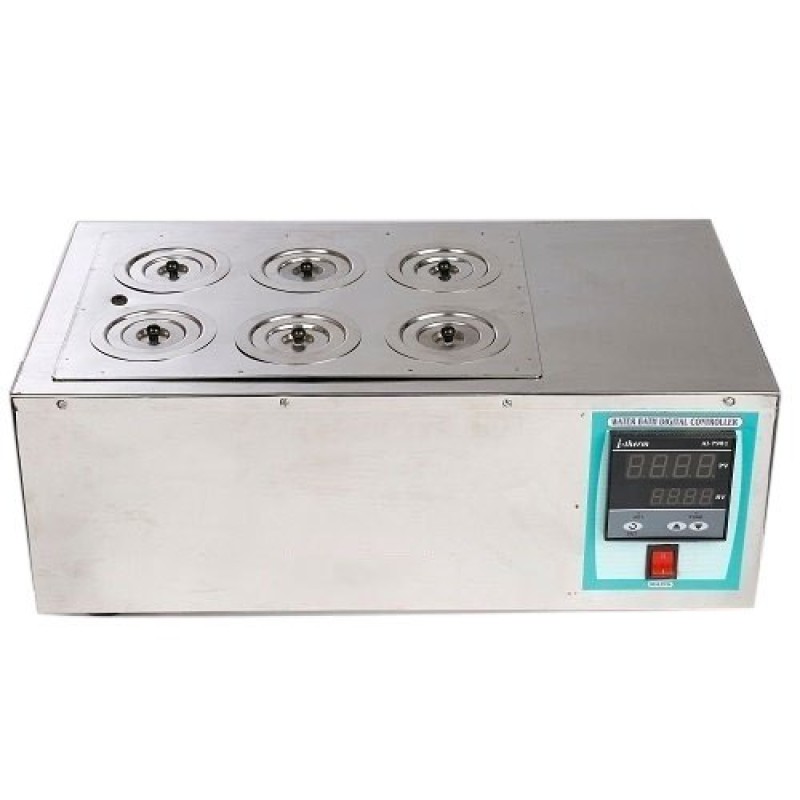

We make 3 models that are available in 4 (four), 6 (six) and 12 (twelve) holes. Temperature range is Ambient +5°C to 100°C, which is controlled through thermostatic regulator. Temperature can be seen on LED display. These water baths are constructed with 304 stainless steel for inner chamber; exterior using powder coated GI sheet. External and internal surfaces feature corrosion resistance property and also easy to wipe and clean after use.

Technical Specification:
