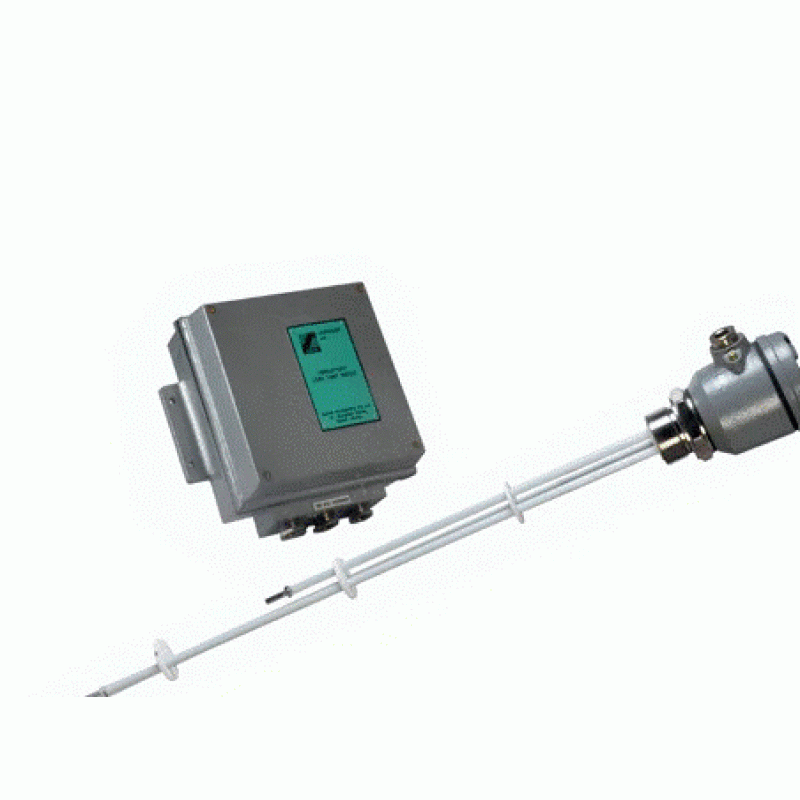

Water Level Limit Switch
Product Details:
Conductivity level limit switches are based on the principle of measuring level through the electrical properties of the process material.
Product Description:
No moving parts, hence free from maintenance
No special cable required for signal transmission
Economical to install
Allows long connectivity between probe and evaluation unit
AC on probe prevents electrodes' electrolytic deterioration
Low voltage on probe for operational safety
Variety of probes for unique process conditions
Variety of control functions, installation systems
Applications:
Switch pumps off when tank is full, to avoid overflow
Maintain a constant level to avoid material wastage
Switch off pumps when running dry
Identify empty tank to avoid weartear , production stoppage
Housing | Cast aluminum, Weather-proof Stoving enamel painted suitable for back panel/wall mounting. |
Cable Entries | 3 * 1/2" NPT, DC gland brass nickel plated |
Mains | 24 V DC |
Relay Output | One set of potential free change over contacts rated at 6A 230 V AC, 50Hz for non-inductive load. |
Power Consumption | 0.5 W maximum |
Fail-Safe Mode | High or Low field selectable. |
Temperature | Operating: 20°C to 60°C |
Switching Delay | 0.5 to 20 seconds for probe covered and uncovered condition |
Dimensions | 215 mm * 195 mm * 85 mm |
Type | PTFE Insulated Rod / Rope probe SS 316 |
Indication | Red LED for Alarm, Green LED for Normal. |
