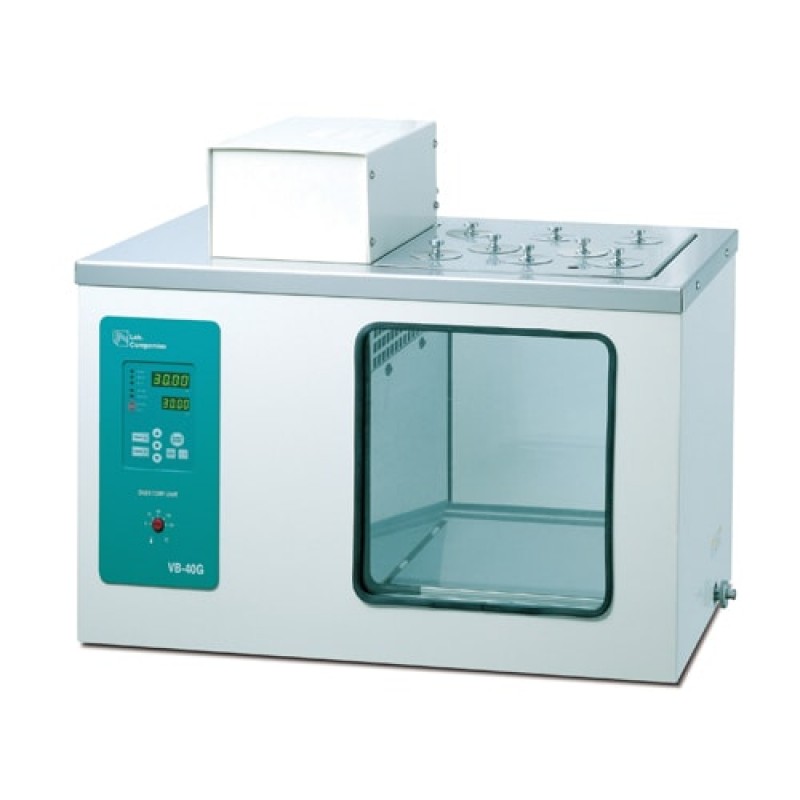

Viscometer Heating Baths

Product Features:

Ultra precise temperature control with excellent visibility

Performance

• Temperature range from ambient +5℃ to 150℃
• Microprocessor PID control / Temperature calibration / Automatic tuning / Automatic run
• Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power

Convenience

• Easy readout digital LED displays
• (0.01℃resolution at 0 to 99.9℃/ 0.1℃ resolution at 100 to 150℃)
• Dual wait on/off timer modes (1 min. to 99 hr. 59 min.)
• Convenient memory function of up to three frequently set temperature
• Clear visibility provided by double tempered safety glass windows in front and rear sides
• Operations at below or slightly above ambient temperature allowed by stainless steel cooling coil
• (for operation from 10℃, use an optional cooling circulator)
• Ø 51mm holes (for glass capillary viscometer tubes) and a Ø12.6 mm hole (for a thermometer)
• RS-232 interface for external control and data collection

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety protection system with warning alarms
• Low fluid level and dry-running, over-temperature, over-current
• Keypad lock function prevents accidental changes
