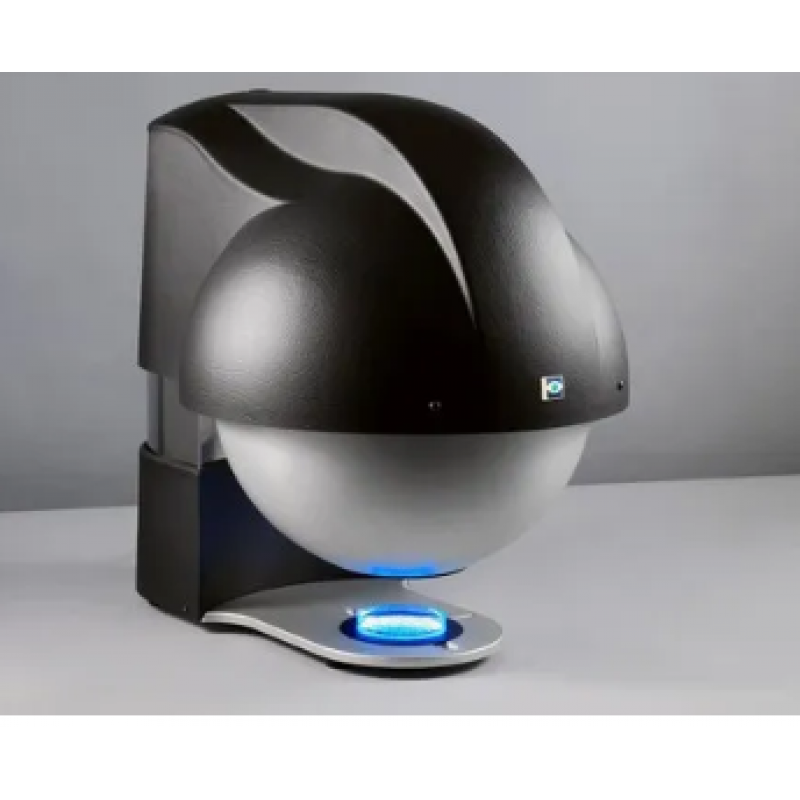

Videometer Seed/ Grain Analyser
Product Details:

Usage/Application	Industrial
Physical Analysis	Size and Shape distribution and many more
Purity Analysis	Adulteration Detection and many more
Seed Health	Quantification of Seeds
Seed Coating Analysis	Check Uniformity of Coating
Germination	Acrospires length and Vigor Analysis
Chlorophyll Analysis	Differentiation of chlorophyll

VideometerLab 4 is a spectral imaging instrument designed for fast and accurate determinationof color, texture, and chemical composition on surfaces up to 90*90 mm per image.The instrument is an easy-to-use system integrating illumination, camera, and computertechnology with advanced digital image analysis and statistics. Using strobed LED technologyVideometerLab 4 combines measurements at up to 20 different wavelengths into asingle high-resolution spectral image.Light sources 19 high power LED sources with a range from 365 nm to 970 nm.One optional external light source.Image size 2192 * 2192 pixels (optionally 2992 * 2992).Resolution ~40 μm / pixel (optionally ~30 μm).Dynamic range Optimized according to the application using autolight setup.Calibration Absolute reflectance calibration using 2 reflectance calibration targets andone geometric calibration target.Simple calibration wizard procedure that takes 3 minutes.Sample size Free height max. 90 mm, diameter of inspection opening 110 mm.Time of complete analysis 5-10 seconds per sample.Dimensions instrument 490-585 mm(h) * 420 mm(w) * 590 mm(d)Dimensions flight case 570 mm(h) * 500 mm(w) * 710 mm(d).Weight 14.1 kg (Net), 26.6 kg (Gross).Power supply 110-240 VAC, 50/60 Hz.Ambient temperature Operation: 5-40 °C, Storage: –5-50 °C.Ambient humidity 20-90 % RH non-condensing.PC requirements Minimum configuration: Intel i7 8th generation or better, 16 GB RAM, USB2 port,USB3 SuperSpeed port.Software requirements Microsoft Windows 10 Professional 64 bit, full Windows update.
Additional Information:

• Delivery Time: 8 weeks
• Packaging Details: Hard case
