Videometer Pharmaceutical Analyzer
Product Details:

Colony Counting	Seperation of Particles, small colonies,
Quality Control	Homogeneity, Shape, Colour, Packaging and more
Coating Analysis	Canonical Discriminant
Counterfeit Detection	Packaging and colour
Adulteration	Added New Chemicals

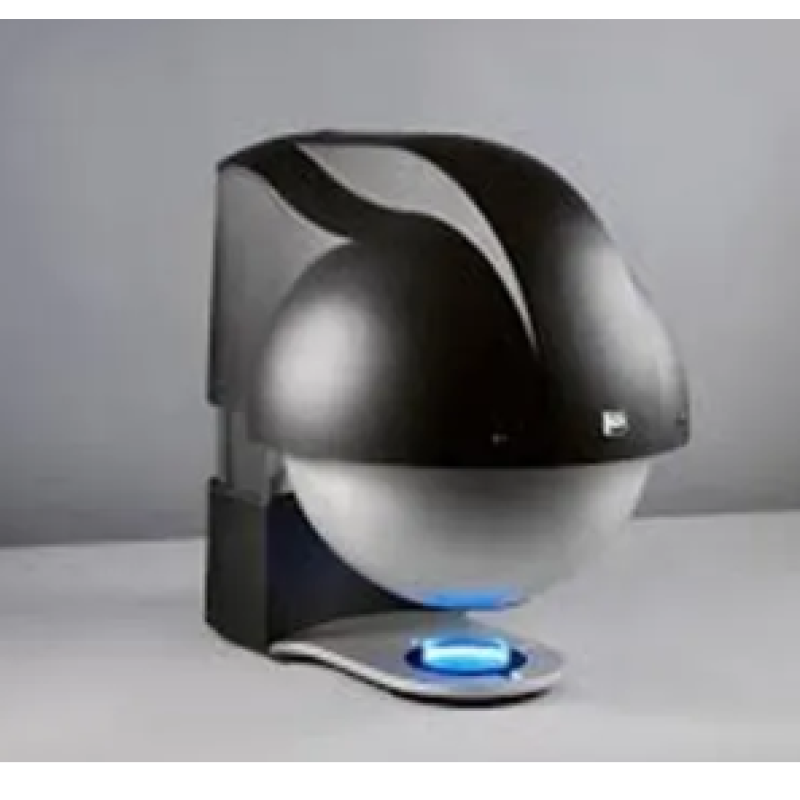

VideometerLab 4 is a spectral imaging instrument designed for fast and accurate determinationof color, texture, and chemical composition on surfaces up to 90*90 mm per image.The instrument is an easy-to-use system integrating illumination, camera, and computertechnology with advanced digital image analysis and statistics. Using strobed LED technologyVideometerLab 4 combines measurements at up to 20 different wavelengths into asingle high-resolution spectral image.Light sources 19 high power LED sources with a range from 365 nm to 970 nm.One optional external light source.Image size 2192 * 2192 pixels (optionally 2992 * 2992).Resolution ~40 μm / pixel (optionally ~30 μm).Dynamic range Optimized according to the application using autolight setup.Calibration Absolute reflectance calibration using 2 reflectance calibration targets andone geometric calibration target.Simple calibration wizard procedure that takes 3 minutes.Sample size Free height max. 90 mm, diameter of inspection opening 110 mm.Time of complete analysis 5-10 seconds per sample.Dimensions instrument 490-585 mm(h) * 420 mm(w) * 590 mm(d)Dimensions flight case 570 mm(h) * 500 mm(w) * 710 mm(d).Weight 14.1 kg (Net), 26.6 kg (Gross).Power supply 110-240 VAC, 50/60 Hz.Ambient temperature Operation: 5-40 °C, Storage: –5-50 °C.Ambient humidity 20-90 % RH non-condensing.PC requirements Minimum configuration: Intel i7 8th generation or better, 16 GB RAM, USB2 port,USB3 SuperSpeed port.Software requirements Microsoft Windows 10 Professional 64 bit, full Windows update.
