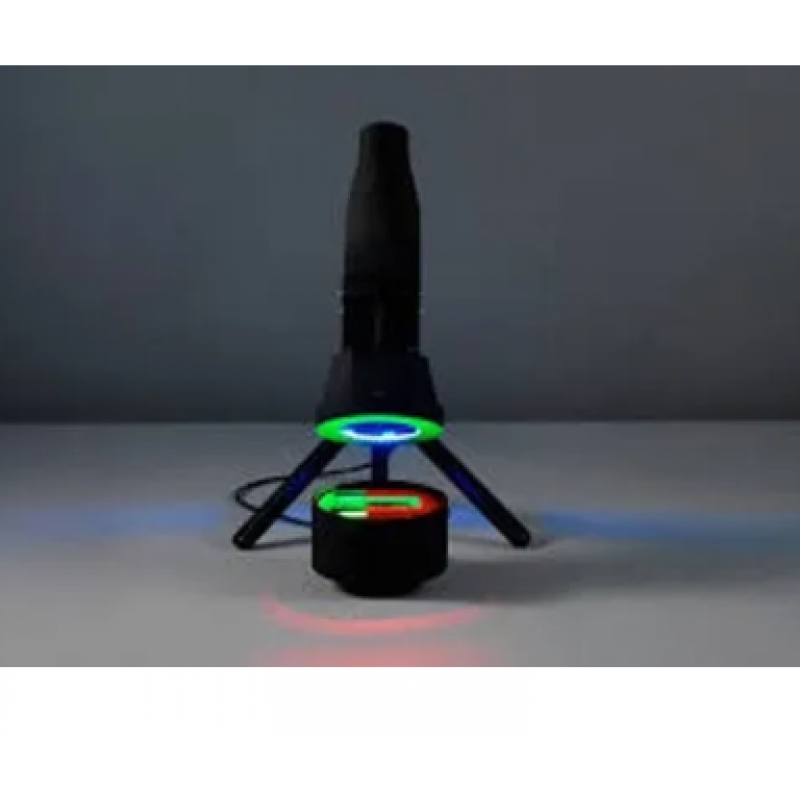

Videometer Multiray
Product Details:
Videometer MultiRay is a hand held imaging instrument designed for fast and accurate determination of μ-topography, graininess, gloss and porosity of material surfaces. The measurements are instantaneous and non-destructive. The technology is particularly useful for quantitative measurements of gloss- and texture-related properties, and may also be combined with measurements related to size and shape distributions. Using LED technology Videometer MultiRay combines measurements of gloss and texture in a high resolution image.
Light sources Combination of darkfield illumination and coaxial illumination.
Image size 4000 * 3000 pixels.
Resolution Pixel size is 10 μm * 10 μm.
Field-of-view Standard field-of-view is 19.5 m * 14.5 mm. Can be extended.
Calibration Calibration procedure using customer selected calibration target or sandpaper grit size 80. Simple calibration wizard procedure that takes 30 seconds.
Time of analysis 1 second per sample.
Dimensions 250 mm (h) * 100 mm(w) * 110 mm(d).
Weight 0.52-0.66 kg (net) (including backlight option), 0.92-1.04 kg (including power supply).
Power supply 100-240 VAC, 50-60 Hz.
Ambient temperature Operation: 5-40 °C, Storage: –5-50 °C.
Ambient humidity 20-90 % RH non-condensing.
Software requirements Microsoft Windows 10 Professional 64 bit, full Windows update.
Hardware options Backlight: Green collimated, 100 mm (ø) * 50 mm (h).
Software options Texture training and example package
