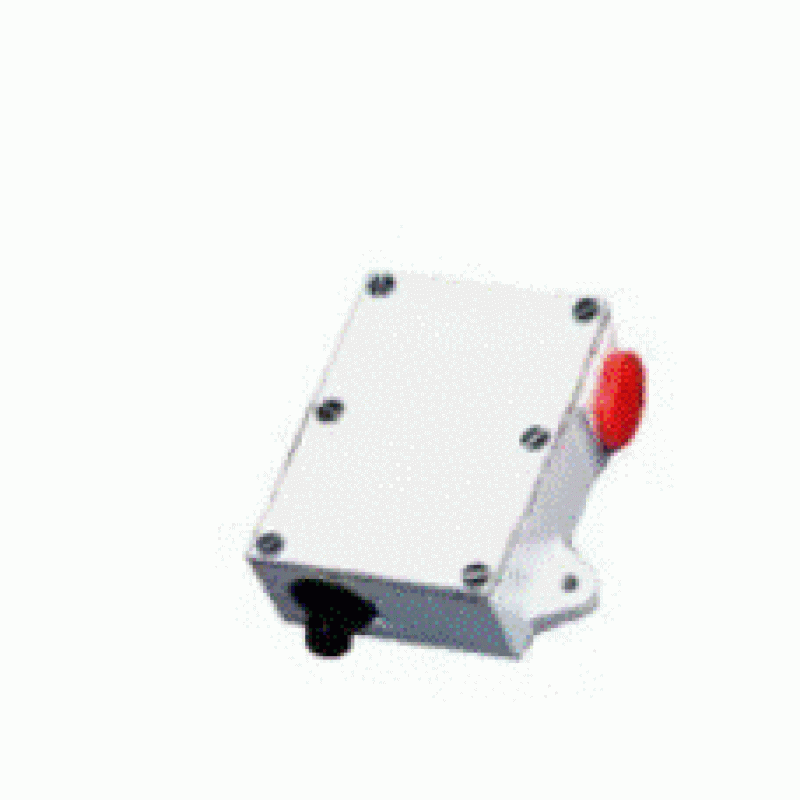

Vibration Switches Exproof
Product Details:
Vibration Switches Exproof Enclosure : Sealed Ingress Protection to IP 67 to BS EN60947-1 Material : Die-Cast Zinc alloy, Mazak III Finish : Chromate Passivation with Polyester Point (Grey) Set level range : 1 to 9g Peak (Horizontal Vibrations) Contact Rating with Silver Contacts : 5 A 240 VAC (non-inductive) SPCO 3 A 30 VDC (non-inductive) up to 1 million operations 4 A 240 VAC per contact for D Pole Versions
In case of Gold Contacts : 0.5 A 30 VDC max for 1.S. Currents Contact Arrangements : DPST (NO or NC as required) Temperature range : Max. 85 degree C, Min. -35 degree C Electrical Reset : Manual reset only
| Vibration Switches Exproof |
| Enclosure : Sealed Ingress Protection to IP 67 to BS EN60947-1 |
| Material : Die-Cast Zinc alloy, Mazak III |
| Finish : Chromate Passivation with Polyester Point (Grey) |
| Set level range : 1 to 9g Peak (Horizontal Vibrations) |
| Contact Rating with Silver Contacts : |
| 5 A 240 VAC (non-inductive) SPCO |
| 3 A 30 VDC (non-inductive) up to 1 million operations |
| 4 A 240 VAC per contact for D Pole Versions |
|
| In case of Gold Contacts : 0.5 A 30 VDC max for 1.S. Currents |
| Contact Arrangements : DPST (NO or NC as required) |
| Temperature range : Max. 85 degree C, Min. -35 degree C |
| Electrical Reset : Manual reset only |
