Vibration Measurement Trainer
Product Details:

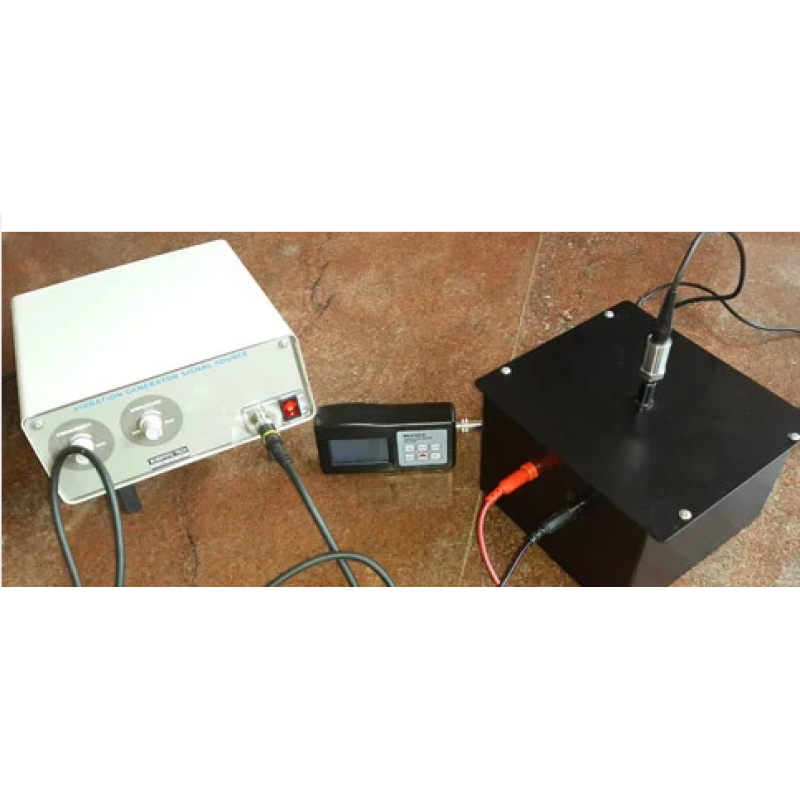

This trainer setup consist of 3 equipments
01. SHAKER: - SCIENTIFIC TECH MAKE
Ø Electromagnetic type Frequency Range: 50Hz to 1 KHz. (Max. Static load on shaker spindle : 100gm)
02. SIGNAL GENERATOR:- SCIENTIFIC TECH MAKE
Ø Frequency range: 50Hz to 1KHz. Output Voltage : 0-10V (p-p) Distortion: <5%.
03. ACCELEROMETER:-MEXTECH OR EQUIVALENT MAKE
Ø Frequency Range: 10Hz to 10 KHz. Display: 4 digits LCD. Piezo-electric sensor type
Ø Measuring parameters: Frequency, Displacement, Velocity, Acceleration:
Measurement Range for VIBRATION METER
Ø Acceleration: 0.1-400.0 m/s2(peak),(10Hx to 10 KHz). Velocity: 0.01-40.00cm/s(rms),(10Hz to 3 KHz).
Ø Displacement :0.001-4.00mm(pp),(10Hz,to 1KHz)
Ø Output: Analog AC output 2Vpp F.S.(Minimum Load 10K ohms).Operating Temperature: 0 degree to 50 oC.
Ø Accuracy: A - /- 5% /-2 digits. : V - /- 5% /-2 digits : D - /- 5% /-2 digits
