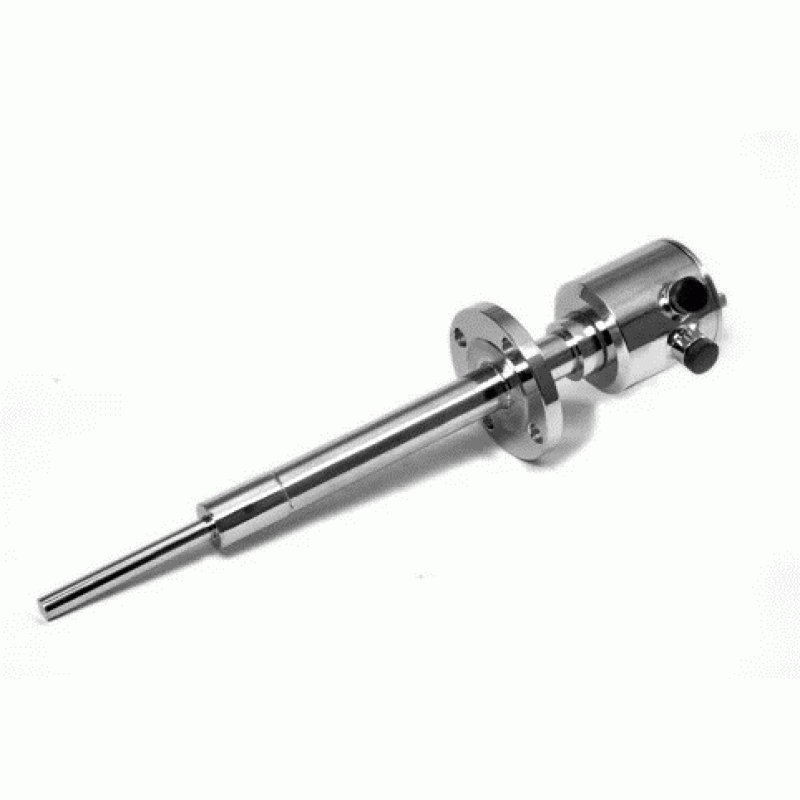

Vibrating Rod Level Switch SLP Vibrosonde
Product Details:
Vibrosonde, vibrating rod type level switch, is a compact level limit switch for free flowing as well as for bulk solids. They are also available in flameproof enclosures suitable for hazardous areas.
Features:
Fine dimensions
Long shelf life
High functionality
Low power consumption, less heat, durability
Fast switching
Self diagnosis
Independent of material’s electrical properties
Immunity to spurious external vibrations
Applications:
Plastic Processing: Powders, pellets, granules
Chemicals: Powders, pills, crystals
Recycling: Paper cuts, ground plastic
Paper & Pulp Industry: Crushed cellulose, shavings
Recycling: Paper cuts, ground plastic
Cement & Power: Flyash, lime, carbon black, cement
Mining, Construction: Pulverized coal, sand, cement,clay
Housing | Cast aluminum, weather-proof stoving enamel painted, suitable for back panel/wall and integral with rod |
Cable Entry | 2 No. |
Mains | 110 or 230 V AC 50 Hz; 240 V AC/DC; 90 to 265 V AC universal power supply. |
Relay Output | One/two set (s) of potential free change over contacts rated at 6A 230V AC, 50Hz for non-inductive load. |
Time Delay | Adjustable from 1 to 20 second for probe covered & uncovered condition. |
Indication | Red LED for alarm and Green LED for normal condition. |
Power Consumption | 3 VA approx. |
Response Time | 1 second. approx. |
Operating Temp. | -20ºC to + 60ºC |
Fail-Safe Mode | High or Low field selectable. |
