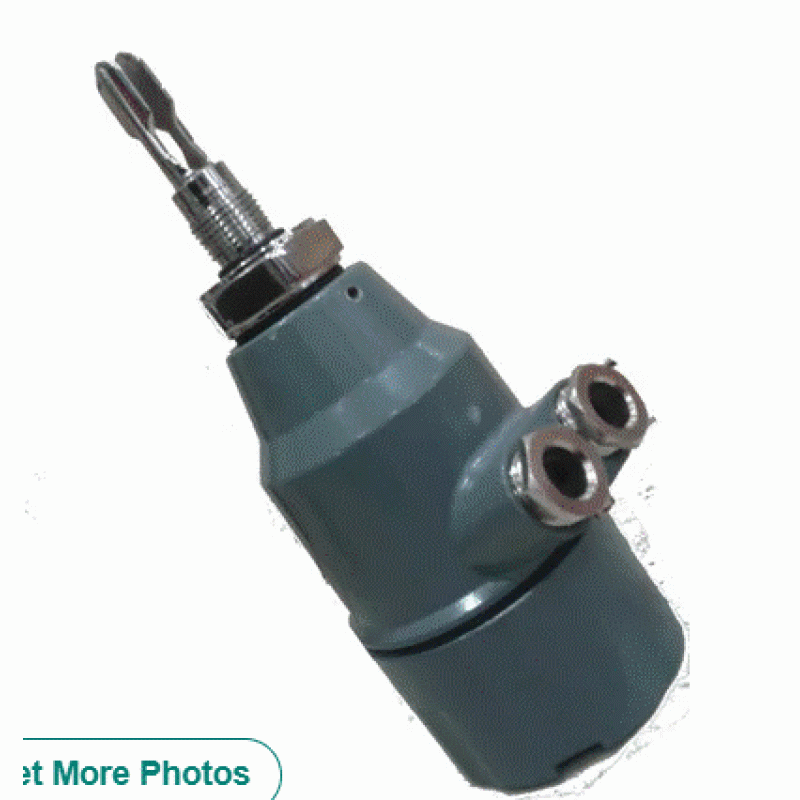

Vibrating Fork Level Switch for Liquid
Vibrating Fork Level Switch for Liquid
Product Details:

A specially shaped tuning fork is kept vibrating by piezoelectric elements at a set frequency. The frequency of the vibrating fork changes when the tines are immersed in the liquid. The change in the frequency is detected and used for switching a relay. The output contacts of the relay can in turn be used for annunciation or control.
Housing
Cast aluminum weather-proof and Flameproof suitable for mounting in hazardous area Gas group IIA, IIB & IIC as per IS-2148
Cable Entries
2 Nos.
Mains
19 to 260 V AC, 50/60 Hz & 11 to 55 VDC
Output
One set (1 SPDT) of potential free change over contacts rated at 6A 230V AC & 6A 25 VDC for non-inductive load. (DPDT Optional)
Time Delay
Adjustable from 1 to 20 second for probe covered & uncovered condition.
Indication
Red LED for alarm and Green LED for normal condition.
Power Consumption
5 VA approx.
Response Time
1 second. approx.
Operating Temp.
-20ºC to + 60ºC
Fail-Safe Mode
High or Low field selectable.
