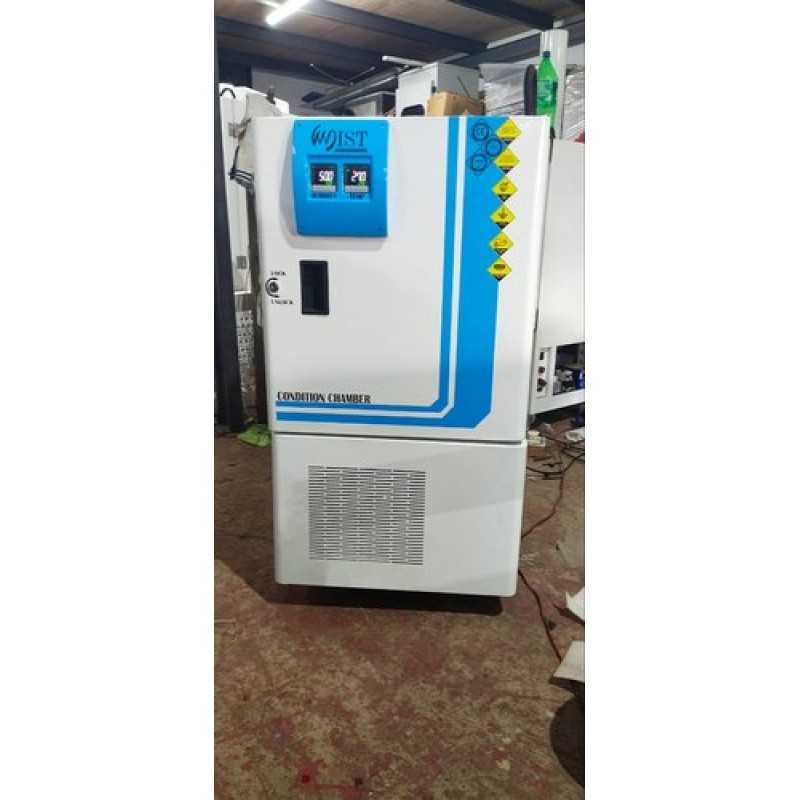

Vertical Cold Chamber

Vertical Cold Chamber

Product Details :

BrandWist
Usage/ApplicationIndustrial
Model Name/NumberWHC-4
Voltage230 V AC
PowerElectric
Temperature-75 deg C to 150 deg C
Weight120-468 kg
Accuracy+- 0.5 deg C
Inner Dimension500 x 400 x 750 mm (W x D x H)
External Dimension625 x 860 x 1350 mm (W x D x H)
Uniformity+- 0.1 deg C


  • Double walled with 80 mm PUF insulated modular panels with easy on-site assembly
  • SS 304 Interior & Exterior either SS 304 or Pre Coated G. I.
  • Stainless Steel Trays
  • Controller power back up 8-10 hours UPS
  • Observation window - 300 x 400 mm
  • PVC strip curtain for reducing temperature leakages
  • Heater line along the door to avoid condensation
  • U-shaped SS tubular heaters
  • Forced air circulation for uniform temperature
  • CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
  • System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
  • Complete Operations driven through PLC with data logging capacity of upto 1000 readings & email facility
  • High speed Ethernet based communication
  • All operations through a single 7" Color Touch Screen
  • High quality imported make T/Rh combo sensor with 4-20 mA output
  • Safety devices: Low & High temperature cut-off settable thermostats & high humidity cut-off settable hygrostat
  • Audio/Visual alarms for deviations
  • Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual Power supply: 415 volts 50 Hz main supply. Also available with 60 Hz Cycle.


OPTIONAL ACCESSORIES:

  • 8 point. Temperature & Humidity Scanner
  • Stand by Cooling System with auto switch over
  • Door Access system (Numeric or Biometric)
  • Mobile Alert system
