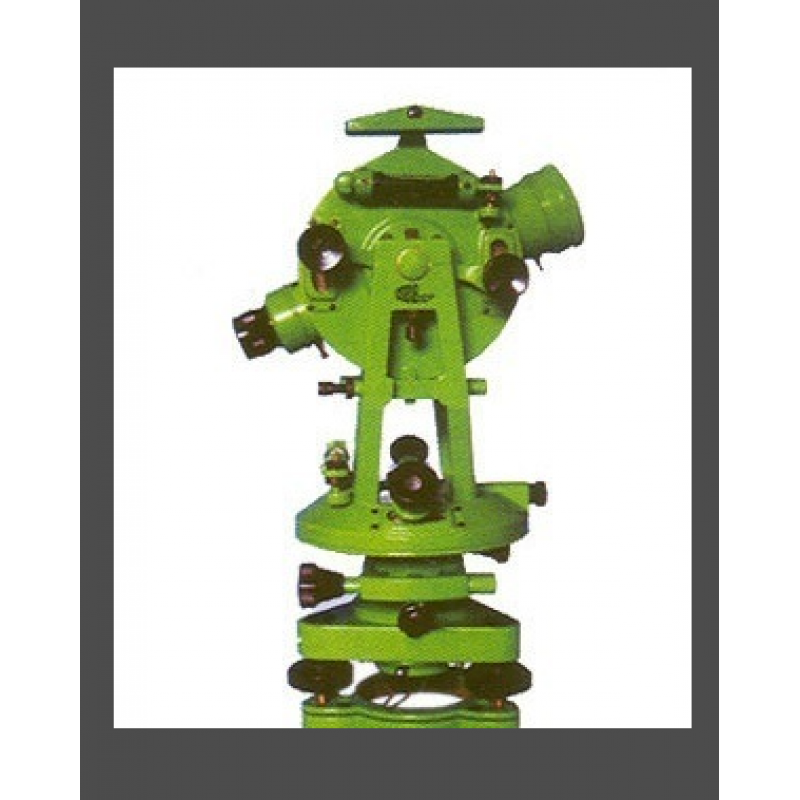

Vernier Transit Theodolite
Product Details:
We are the leading supplier and trader of all kind of Transit Vernier Theodolite

• Transit Vernier Theodolite
• Available in 10sec./20sec.
• With Aluminium/Wooden Stand.


 Specifications:

• Telescope (Internal Focusing)
• Telescope Image: Erect/Invert.

• Magnification: 30 X
• Objective Aperture: 40mm

• Shortest/Longtest Focusing Distance: 1.5/300m
• Length of Telescope: 210mm

• Stadia Line Ration: 1:100
• Additive Constant: 0

• Sensitivity of Plate Bubble: 40o/2 mm
• Sensitivity of Vertical Circle Bubble: 20o/2 mm

• Optical Plummet
• Magnification: 2.5 X

• Focusing Range: 0.5m-Y
• Vertical Circle & Horizontal Circle

• Graduation of Circle: 360o
• Reading by Vernier: 20"
• 10"
• Weight: Instrument (without box) 6kg.
