Vacuum Transmitters
Product Details:

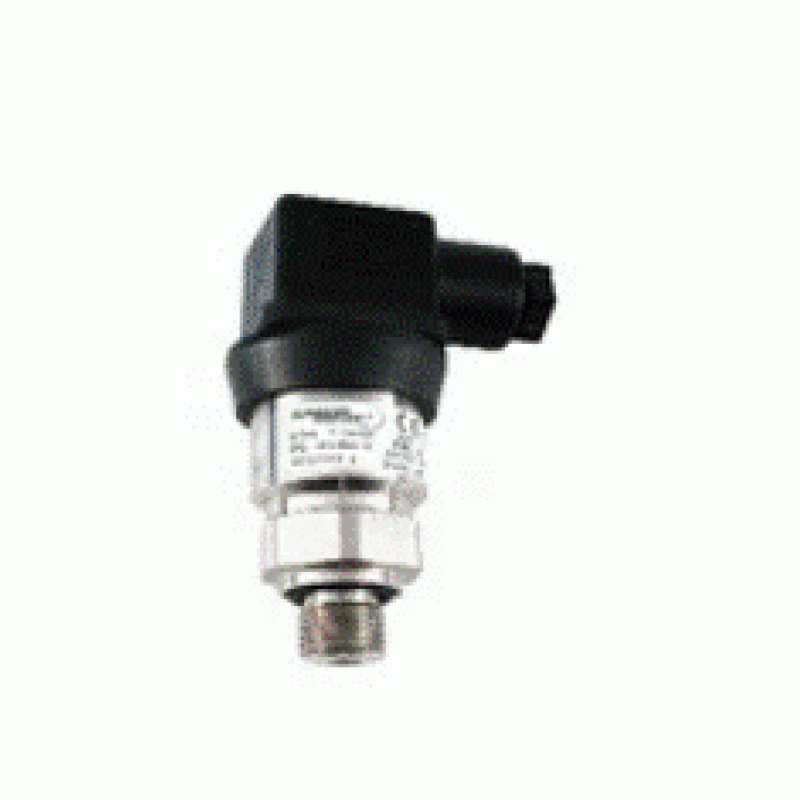

Vacuum Transmitters

Vacuum Transmitter senses the Vacuum in the process and gives the output in current or, voltage in proportion to the change in Vacuum.

Indication : without

Output options : 4 to 20 mA, 0 to 10 Vdc, 1 to 5 Vdc or, 0.5 to 4.5 V dc under 5 V dc

Accuracy : +/- 0.25%, 0.5% or, 1% of FS

Enclosure type : IP 65, IP 67, IP 68, Exproof

Zero and Span Adjustment : With or, Without

Process connection options : 1/4" BSP threaded end

Ranges : various ranges from 0 to 760 mm Hg

Max. pressure : Full Vacuum up to 2 bar pressure

Operating Temperature: 0 to 60 degree C
