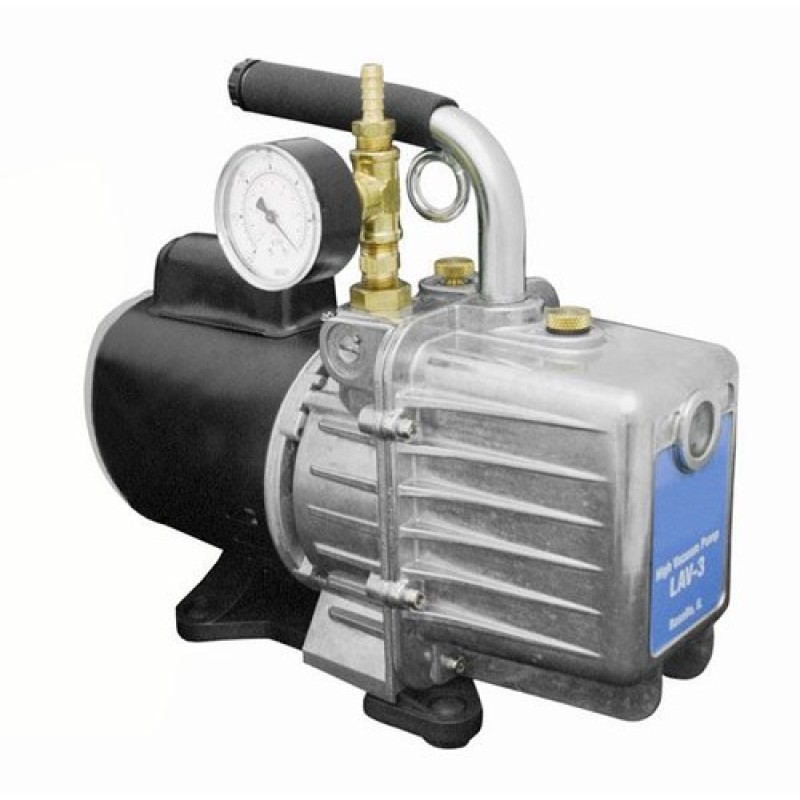

Vacuum Pump
Product Details :
| Power | 1/2-1HP |
| Ultimate Vacuum | 0. 005mm of hg |
| Frequency | 50Hz |
| Air Displacement | 150 lt/ min |
| Power Source | Electric |
The pumps are of basic oil-sealed design, running at low rpm by v-belt drive arrangement to give steady and dependable performance.
Features:
- Stage:- double
- Vacuum gauge ( to indicate vacuum of the level as indicated above) with regulator
- Air ballast:- in built
- Non-return valve
Specifications:
Model | Stage | Elec.Motor HP | Free Air Displacement Lit/Min C.F.M | Oil Charge in Lter. | |
AOS-50 | Single | 1/4 | 50 | 1.8 | 3 |
AOD-50 | Double | 1/4 | 50 | 1.8 | 3 |
AOD-75 | Single | 1/4 | 75 | 2.5 | 4 |
AOD-75 | Double | 1/4 | 75 | 2.5 | 4 |
AOD-100 | Single | 1/4 | 100 | 3.5 | 4 |
AOD-100 | Double | 1/4 | 100 | 3.5 | 4 |
AOD-150 | Single | 1/2 | 150 | 5.3 | 4 |
AOD-150 | Double | 1/2 | 150 | 5.3 | 4 |
AOD-200 | Single | 1/2 | 200 | 7.0 | 4 |
AOD-200 | Double | 1 | 200 | 7.0 | 4 |
