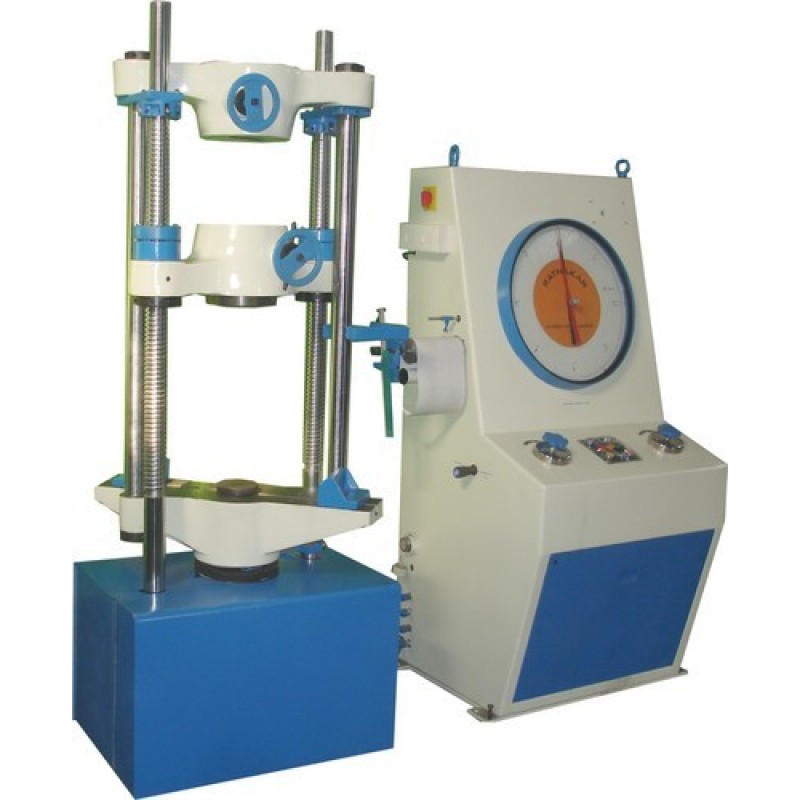

Universal Testing Machine KUT

Product Details:

We are providing a qualitative range of Universal Testing Machine. Equipped with many qualities, this machine is serving various industries. Servo controlled electronic universal testing machine can be attained at market leading prices.

Technical Features:

• Loading accuracy as high as + 1%

• Straining at variable speeds to suit a wide range of materials.

• Motor driven threaded columns for quick effort.

• Less adjustment of middle cross-head-to facilitate rapid fixing of test specimen.

• Simplicity in reading because of digital readouts.

• Wide range of standard and special accessories, including load stabilizer.

• Easy change from plain to threaded and screwed specimens.

• Large effective clearance between columns enables testing of standard specimens as well as structures.

• Simple controls for ease of operation.

• Robust straining frame of an extremely rigid construction.

• Safe operation ensured by means of safety devices.

• Fully enclosed and protected pressure transducer.

• Optional serial port to transfer data to computer for analysis / storage evaluation etc.


Technical Specifications:

• 1st Measuring Range : 0-120 KN

• Load Resolution : 0.03 KN

• 2nd Measuring Range : 0-160 KN

• Load Resolution: 0.06 KN

• 3rd Measuring Range: 0-600 KN

• Load Resolution: 0.15 KN

• Resolution of Piston Movement (Displacement): 0.1 mm

• Clearance for tesile at fully descended working piston : 50-700 mm

• Clearance for compression test at fully descended working piston : 0-800 mm

• Clearance between columns: 600 mm

• Ram Stroke: 600 mm

• Straining / Piston speeds (at no load): 0-100 mm

• CONNECTED LOAD

• HP @ (Voltage: 440 V, Phase: 3, Hz : 50 ) : 2.5


Standard Accessories:

• For tension test:

• Clamping for round: 10-25 mm

• Specimens diameters : 25-40 mm, 40-55 mm

• Clamping jaws for flat: 0-15 mm

• specimens thickness : 15-30 mm

• Width : 70 mm


For compression test:

• Pair of compression plates of diameter: 120 mm


For transverse test:

• Table with adjustable rollers width of rollers: 160 mm

• Diameter of Rollers: 50

• Maximum clearance between Supports: 600 mm

• Radius of Punch tops: 16 , 22 mm


Software features:
Windows based software with real time XY graphics display and software for data management.

• With advanced features:

• Real time graph on PC.

• Superimpose graph system.

• Zooming of graph.

• Stress Vs. strain graph.

• Stress Vs. Displacement Graph.

• Point Tracing on graph.

• Along with Computer , UPS, Printer & Hydraulic Oil


Additional Information:

• Item Code: KUT60E
