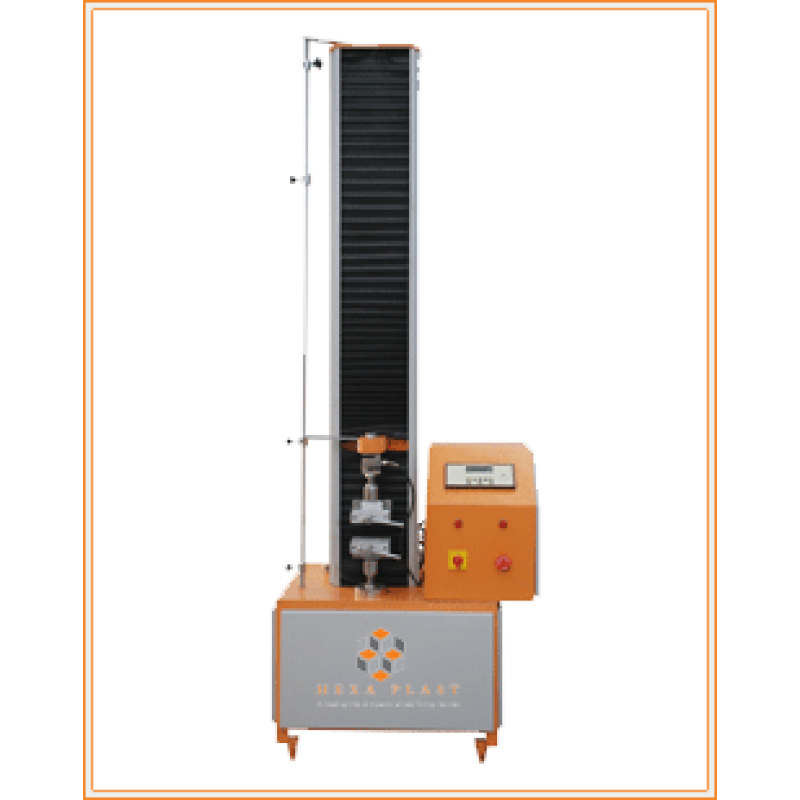

Universal Tensile Testing Machine
Click Image for Gallery
Universal Tensile Testing Machine
Universal Tensile Testing Machine
Product Details:
Hexa Plast offers the best in class Tensile testing machine that comes with the top notch features and long service life. We spend enough time in understanding the current demand in the market that helps us to provide the finest quality machines to our customers.
We spend enough budget in the research and our highly qualified engineers work on every detail of the machine until it reaches the perfection.
UTM/Tensile tester:
Tensile Testing Machine used for getting the accurate Measurement of material with standing force capacity by pull it apart and to determine what extent the materials can be stretched before reaching the breaking point.
The “Hexa Plast” UTM Gives Highly Accurate Result with Latest Technology and is available in So many Different Models for testing various types of Materials. Load Measuring Sensor, Sample Holding Grips, Fixtures can be interchange smoothly and easily to perform various test like Compression, Flexural , Co-efficient of Friction, peel strength, bond strength.
Standards:
All Is Standards, ASTM D 638, D 882, D 790, D 695 and BS 2782 or so many equivalent standards.
Application:
Tensile Tester machines is for the universal test applied to many polymers to check the mechanical properties and it is the most important property as majority of mechanical loading & properties like Tensile strength and modulus , elongation , compressive strength Etc. are calculate by using this machine.

Manufacturers  & Exporters of Tensile Tester:
Hexa Plast offers not only the perfectly made machines, but we also ensure that the machine reaches to the customers safely and on time. We export our machineries around the globe and we have gained the good reputation from all our customers for our wide delivery network too.

Order Today:
If you are in need of the Tensile Test machines, you can call us or email us and we will get back to you in no time.

Application
Tensile Tester machines is the universal test applied to many polymers for check the mechanical properties & it is the most important property as majority of mechanical loading & properties like Tensile strength and modulus , elongation , compressive strength Etc. are calculate by using this machine.
Model No.
H-UTM-1
H-UTM-2
H-UTM-3
H-UTM-4
H-UTM-5
H-UTM-6
H-UTM-7
H-UTM-8
H-UTM-9
H-UTM-10
Load Capacity
100 K.g
250 k.g.
500 k.g.
1000 k.g.
2500 k.g.
5000 k.g.
7500 k.g.
10000 k.g.
20000 k.g.
40000 k.g.
Max. Cross Head Travel between to grips ( In MM)
1000 mm & As Requi.
1000 mm & As Requi.
1000 mm & As Requir.
1000 mm & As Requir
1000 mm & As Requir.
1000 mm & As Requir.
1000 mm & As Requir
1000 mm & As Requir
1000 mm & As Requir
500 mm & As Requir
Cross Head Travel Speed (MM / Min.)
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
10-500 MM Per /Minute
As per Require.
As per Require.
Speed Accuracy
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
< 0.2 %
Load Cell Unit.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Kg OR N.
Load Accuracy
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
< 0.5%
Extension Resolution
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
0.1 mm OR 0.01 mm
Extensometer Input.
On Demand
On Demand
On Demand
On Demand
On Demand
On Demand
On Demand
On Demand
On Demand
On Demand
Power Supply.
230 v AC, 1 Phase , 50- HZ
230 v AC, 1 Phase , 50- HZ
230 v AC, 1 Phase , 50- HZ
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
415 v AC , 3 Phase , 50- HZ.
