Universal Scanning Mobility Particle Sizer

Product Details:

Usage/Application	Aerosol research,Environmental and climatic studies,inspection of filter/filter media etc.
Features	Universally connects to DMAs and nanoparticle counters from other manufacturers.
Brand	Palas GmbH,Germany
Particle Size Range	Approx. 8 - 1,200 nm (depends on various models available)
Number Concentration	Approx. 0 - 10^8 particles/cm3 (depends on various models available)
Size Channels	up to 256 (128/decade)
Volume Flow	2.5 - 14 l/min

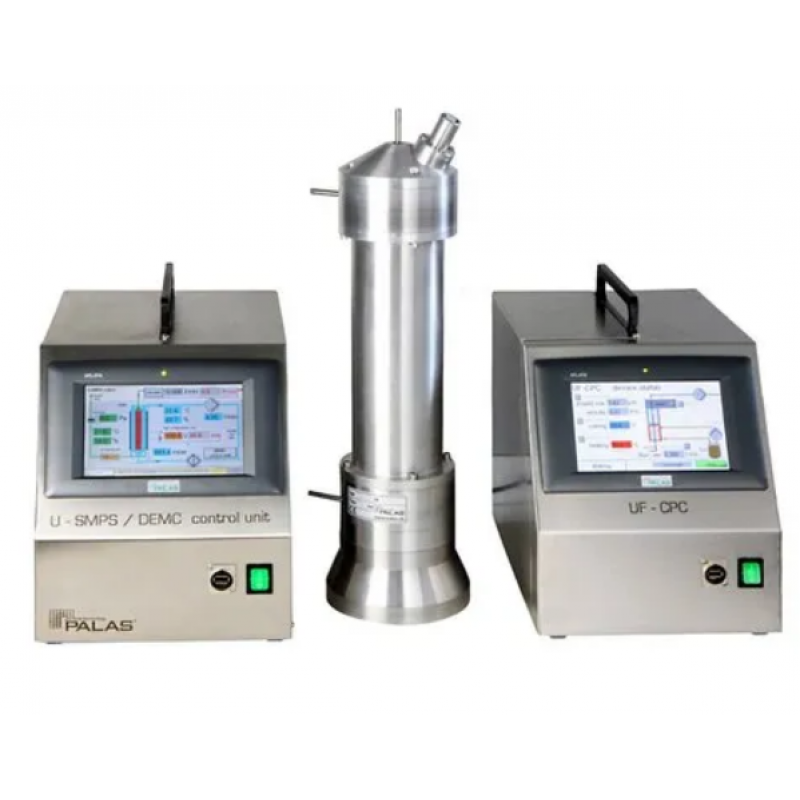

Palas® universal scanning mobility particle sizer (U-SMPS) is available in two versions. The long classifying column is able to reliably determine particle size distributions from 8 to 1,200 nm and concentration of aprox. 10^8 particles/cm^3 with high resolution such as 128 size channels per decade.



The U-SMPS system includes a classifier [defined in ISO 15900 as a differential electrical mobility classifier (DEMC) also known as a differential mobility analyzer (DMA)], in which aerosol particles are selected according to their electrical mobility and passed to the outlet. These particles are then counted by a condensation particle counter UF-CPC which is available in three models.
