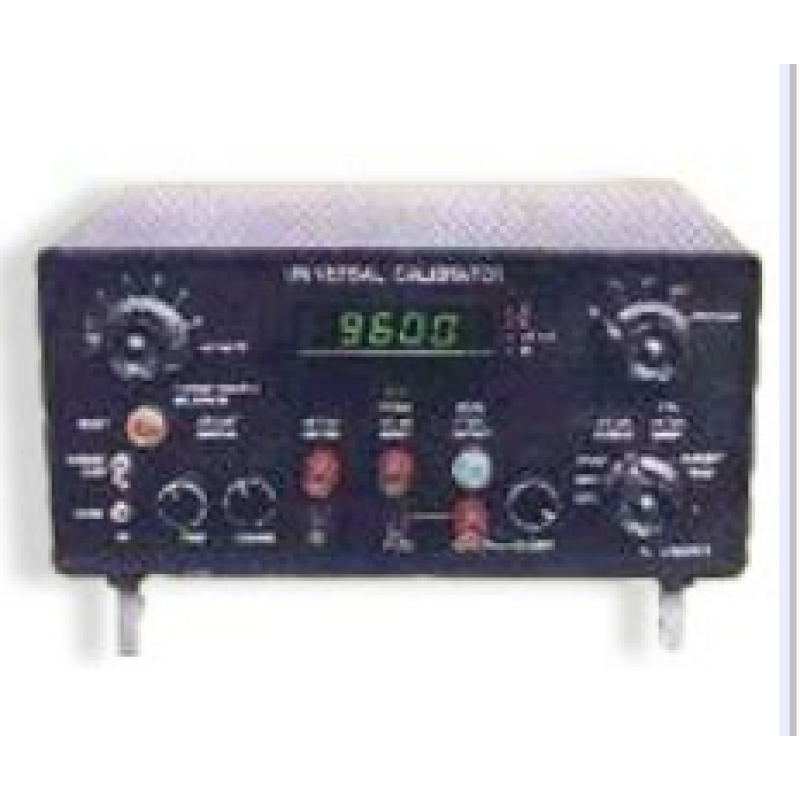

Universal Calibrator

Power Supply : 230 V ± 15% 50 Hz

Dimension (max) : 260 x 120 x 200 mm
Linearization : 100 % Digital
Cold Junction Compensation : Toggle Switch to switch off the automatic cold junction. Compensation is provided automatic from 0°C to 50°C
Display : 5 Digit 12.5 mm Green Red LED
Features :
¤ µP based.
¤ Accurate testing and calibration for thermocouples, voltage/current based equipments like indicators, controllers, recorders etc.
¤ Capable of measuring the output of thermocouples or simulating thermocouples types J, K, T, E, R, S & B (ANSI standard).
¤ Measures/Simulates mV AND mA (200 mV/20 mA).
¤ Direct display of Simulated values in °C or °F (0.1° Resolution).
¤ Measures/simulates temperature values of PT-100 RTD.
¤ Automatic cold junction compensation.
¤ 100% Digital Linearization eliminates use of conversion tables.
¤ All values adjusted by means of 10-Turn Coarse & Fine Potentiometers.
¤ Facility to Display Ambient Temperature in °C OR °F.
¤ Self Check for Hardware Checking.
¤ Wrong Switch combination indicated by Blinking Display.
