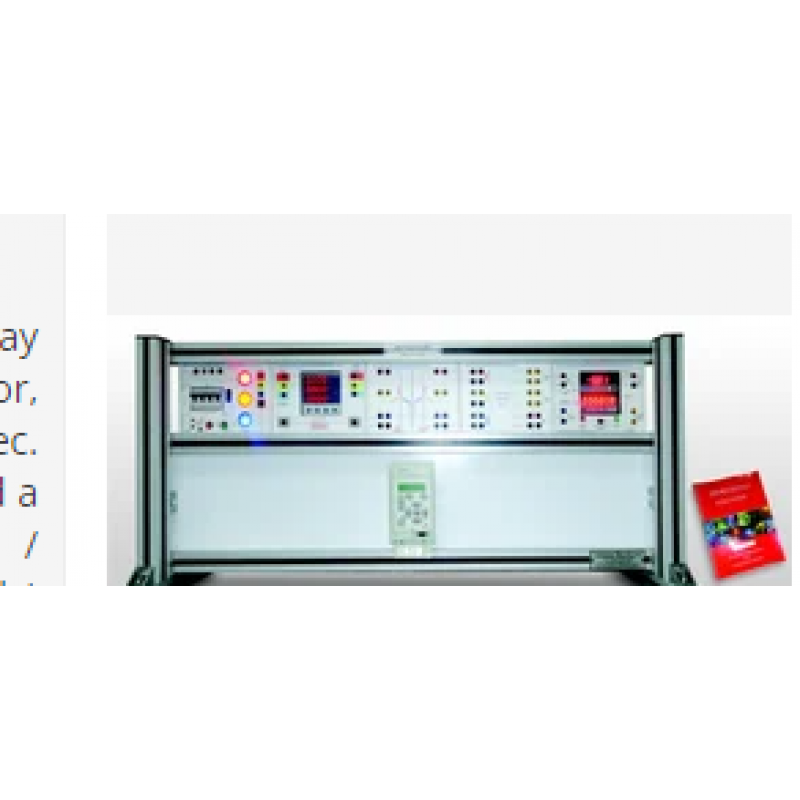

Under Over Frequency Relay Trainer
Product Details:
Each of above trainer has built in requisite relay testing kit typically consisting of voltage injector, current injector, elapsed time counter (1 msec. resolution), trip relay logic etc, The Trainer need a few set of associated relay testing (current / voltage injection etc. ) panels (7-8 nos. typically) which are mounted in a light weight sturdy aluminum profile flat demo panel system. Do not need any separate testing kit, Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits, Each panel has ABS molded plastic sturdy enclosure, and colorful screwless overlays showing circuits diagrams & its connection tag numbers for easy understanding and connection, Useful for Post Graduate Project & Research Purpose Set of Instructor Guide & Student Workbook
