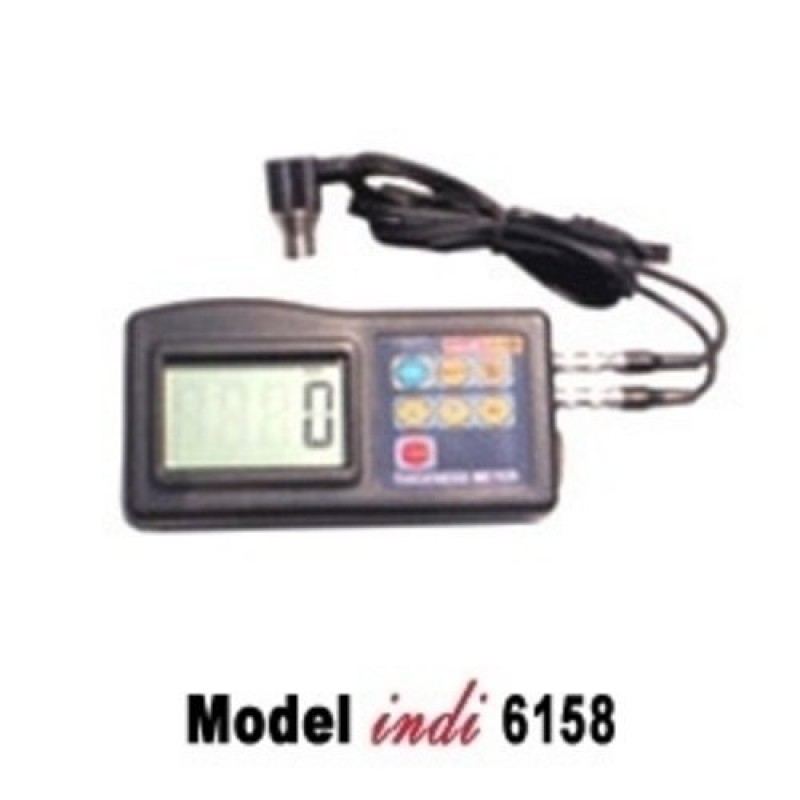

Ultrasonic Digital Thickness Meter

Product Details:

Model Name/Number	6158
Usage/Application	Automation
Brand	Source 1
Weight	Up to 300 gm
Frequency	Up to 50 Hz
Display Type	Digital

We are a renowned organization, which is engaged in offering Ultrasonic Digital Thickness Meter to our clients. The offered range of ultrasonic digital thickness meters is available in customized designs, colors, shapes and sizes to append and respond to the diverse demands of respectable clients. Along with this, the offered range of ultrasonic digital thickness meters is designed utilizing high grade raw material and modern techniques in conformation with the highest quality norms and standards.

Features:

• Portable size and easy operation
• Suitable for any metallic and non-metallic materials ultrasonic can go through

• Self-compensating of non linearity function is supplied for correction of pickup non-linearity

• Specifications :
  Display	4 Digit Large LCD
  Thickness Range	1.2 - 200 mm (45 mm Steel) / 0.04 – 7.87 inch
  Accuracy	±(0.5%+0.1 mm),
  Resolution	0.1 mm / 0.001 inch
  Sensor Type	Ultrasonic, 5 MHz
  Sensitivity	High power of emission & broadband of receiving sensitivity
  Unit Selection	mm & inch Switchable
  Material Type	11 types of material & 500 ~ 9000 m/s velocity
  Material Selection	By Switch
  Sensor Head	8 mm Diameter x 28 mm (34” Sensor Cord Length)
  RS 232 Output	Provided
  Software & Cable	Optional
  Calibration Block	Provided
  Accessories	Carrying case, Oil Sachet
  Aux. Supply	4 x 1.5 V AAA Size Battery
  Cabinet Size	120 X 62 X 30 mm ABS Plastic
