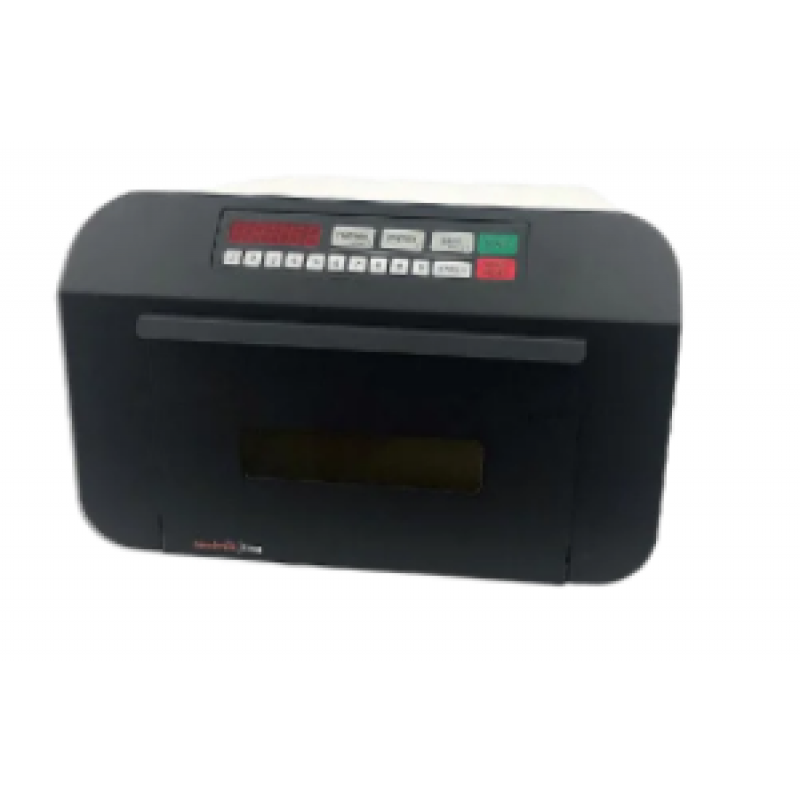

UVP Crosslinker

Product Details:

• Built-in radiometer calibrated to a NIST traceable standard enables precise and accurate dosing to obviate end-user calibration
• Safety interlocks to prevent users from accidental UV exposure
• Capable of delivering up 10 J/cm2 of UVA, UVB, or UVC
• Extensive publication record using UVP Crosslinkers
• Highly-uniform surface illumination
• Compact-size to accommodate limited lab space

Immobilization of Nucleic Acids to Membranes

The UVP Crosslinker is a microprocessor controlled UV irradiation system dedicated to nucleic acid linking to membranes for Southern, Northern, Dot and Slot Blot applications. It can also be used for UV disinfection and for elimination of PCR contaminations.

Microprocessor Controlled Reproducibility

The programmable microprocessor constantly monitors the UV light emission. Irradiation stops exactly when the programmed energy is achieved. Thus, the effect of decreasing UV intensity due to bulb aging is compensated for.

Durability

The UVP Crosslinker combines the latest UV technology with high quality manufacturing: aluminum UV exposure chamber, protective quartz disk on the UV sensor cell, and a highly resistant and easy-to-clean keypad and housing.

Ease of use

The large display provides a series of predefined methods, making the UVP Crosslinker an easy to use yet powerful instrument for immobilization of nucleic acids to membranes. The programmed data are shown on the LED display.

CL-3000 General Applications:

• UV induced mutations
• Membrane crosslinking

• Biomolecular crosslinking
• UV dose calibrated to a NIST traceable standard

TECHNICAL SPECIFICATIONS

Technical Specifications	CL-3000	CL-3000M	CL-3000L
Wavelengths	254 nm	302 nm	365 nm
Bulbs	6 x 8 Watt
Energy	0000.1 - 9999.9 mJ/cm² (0 - 10 J/cm²)
Time	000:01 - 999:59 (>300 J/cm²)
Temperature	15⁰C - 35⁰C
Humidity	70% Non-Condensing
Altitude	up to 3,000M (9,842 ft)
Sound Level	≤ 50 dba
Housing Surface Temp	≤ 30⁰C
Startup Time	< 1 sec
External Dim (L x W x H)	41 cm x 40 cm x 26.5 cm
Internal Dim (L x W x H)	35 cm x 27 cm x 16 cm
Weight	6.8 Kg: 15 lb
Operating Power	100 - 115VAC & 230VAC 50/60Hz
Certifications	CE, RoHS (CSA In Process)
