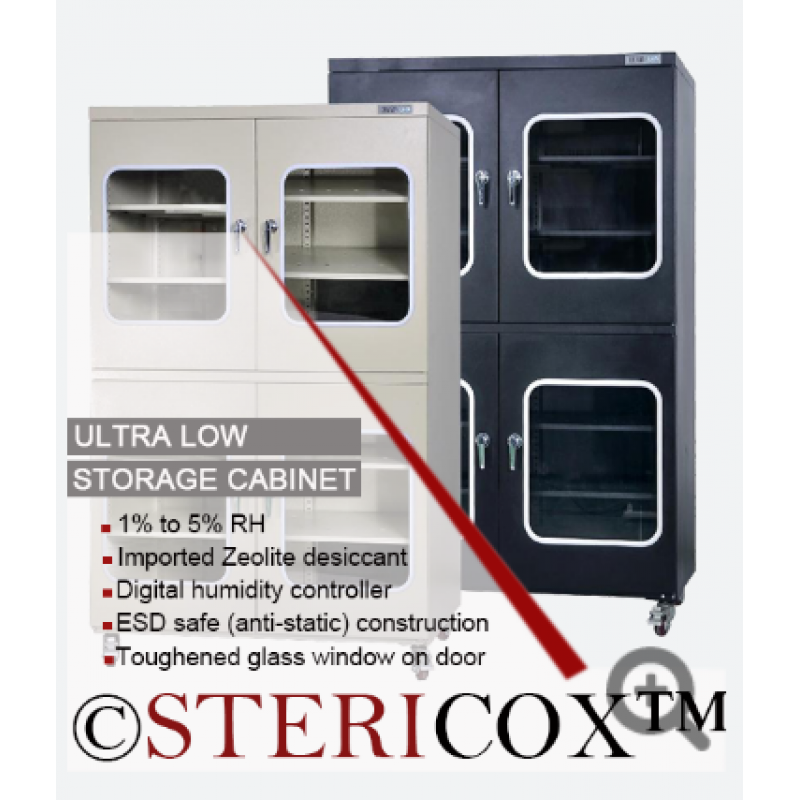

ULTRA LOW DRY CABINET

These ultra low humidity cabinets are designed to create low humidity below 5%RH to store moisture sensitive devices as per IPC/JEDEC J-STD-033 standard. These low humidity cabinets are equipped with imported dehumidifier based on Zeolite desiccant, which automatically maintains humidity level below 5%RH. Each cabinet is equipped with digital display of RH level. User does not need to adjust RH level, these cabinets have digital controller which automatically adjust humidity as soon as the machine switched ON.

TECHNICAL SPECIFICATIONS

Humidity range	1% to 5% RH
Controller	Automatic controller w/ digital display
Display precision	±3% RH, ±1°C
Recovery time	30 min recovery time to 5% RH when door opens for 30 seconds then close
Dehumidifier	Imported dehumidifier
Construction	1mm thick cold rolled steel sheet with anti-static paint
Glass window	3.2mm high intensity toughened glass windows
Lock	Zinc alloy cabinet door lock
Mounting	Caster wheels w/ brake
Power supply	220 Volts 50Hz
Optional	N2 flow meter Oxygen content sensor Data logger w/ USB port Open door signal alarm Over humidity signal alarm Extra shelves

STANDARD SIZES / DIMENSIONS

Model	Volume	Inner Dimensions (W x D x H)	Overall Dimensions (MM)	Shelves
ULDC98	98L	446 x 372 x 598	448 x 400 x 688	1PCS
ULDC160	160L	448 x 422 x 848	450 x 450 x 1030	3PCS
ULDC240	240L	598 x 370 x 1083	600 x 400 x 1265	3PCS
ULDC320	320L	898 x 420 x 848	900 x 450 x 1030	3PCS
ULDC435	435L	898 x 570 x 848	900 x 600 x 1030	3PCS
ULDC540	540L	598 x 720 x 1318	600 x 750 x 1500	3PCS
ULDC728	728L	598 x 680 x 1733	600 x 710 x 1900	5PCS
ULDC870	870L	898 x 570 x 1698	900 x 600 x 1800	5PCS
ULDC1428-4	1428L	1198 x 680 x 1738	1200 x 700 x 1920	5PCS
ULDC1428-6	1428L	1198 x 680 x 1738	1200 x 700 x 1920	5PCS
